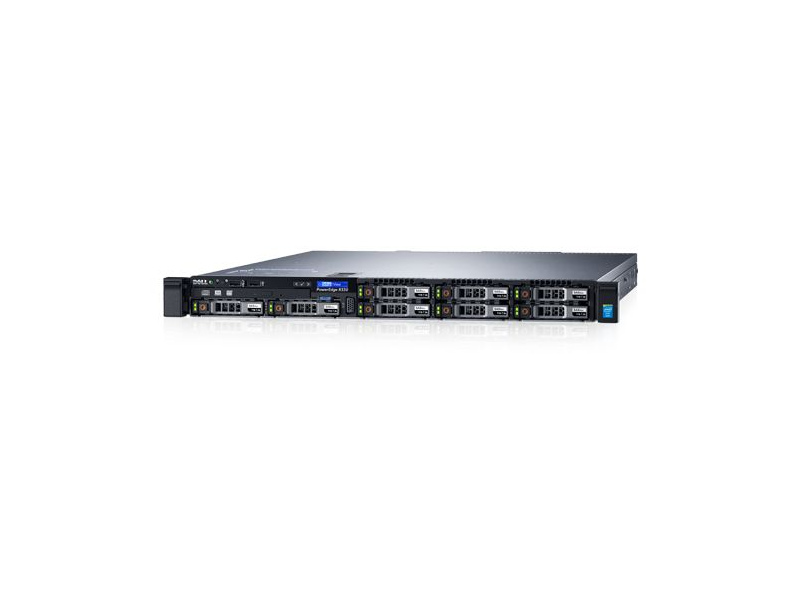

Dell PowerEdge R330
Dell PowerEdge R330 Available to Quote:

Dell PowerEdge R330

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots: 2 slots PCIe
Network interfaces: 2-Port 1GbE (RJ45)
USB ports:
  • 2-Port USB (front panel);
  • 2-Port USB (rear panel);
  • 1-Port USB (internal)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
42.8 (1U) x 482.4 x 677.3 mm
(1.68 (1U) x 18.99 x 26.66 in)
4
Maximum Weight (kg)
Chassis with 4 HDD: 13.8 kg (30.42 lb)
Chassis with 8 HDD: 13.4 kg (29.54 lb)
5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 1
Series:

Intel Xeon E3-1200 v6



11
Memory
12
Type: DDR4 UDIMM
Number of slots: 4
Maximum RAM 64 GB (4 x 16 GB)
13
Storage
14
Chassis with 4 HDD 2.5" / 3.5":
  • 32 TB (4 x 8 TB NL SAS);
  • 24 TB (4 x 6 TB SATA);
  • 7.2 TB (4 x 1.8 TB SAS);
  • 7.68 TB (4 x 1.92 TB SSD)
Chassis with 8 HDD 2.5":
  • 8 TB (8 x 1 TB NL SAS);
  • 14.4 TB (8 x 1.8 TB SAS);
  • 15.36 TB (8 x 1.92 TB SSD)
15
Power Supply Unit (PSU)
16
AC PSU
Power capacity (W):
350
Type:
Removable
Quantity:
2
Rated voltage range:
100 to 240 VAC, 50-60 Hz



17
DC PSU

Not supported

18

R330 Datasheet (en)
