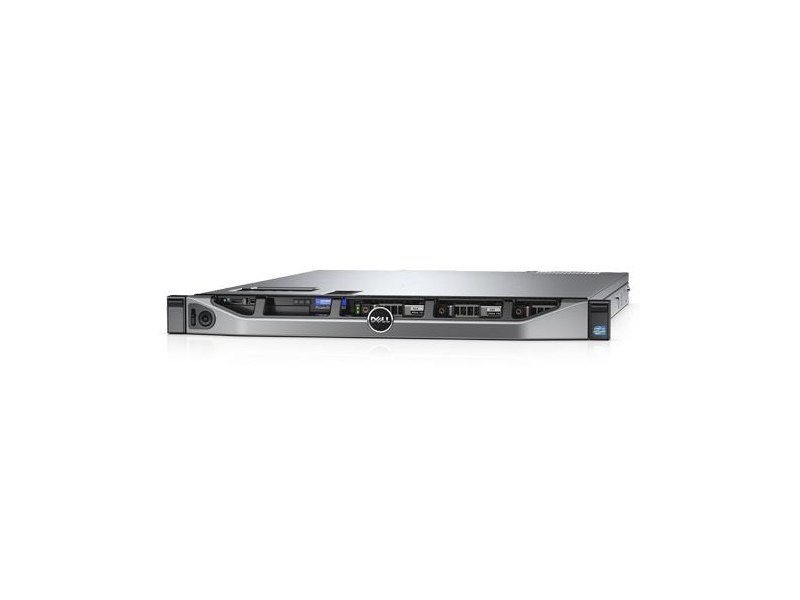

Dell PowerEdge R430
Dell PowerEdge R430 Available to Quote:

Dell PowerEdge R430

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots: 2 slots PCIe;
Network interfaces: 4-Port 1GbE (RJ45)
USB ports:
  • 2-Port USB (front panel);
  • 2-Port USB (rear panel);
  • 1-Port USB (internal)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
42.8 (1U) x 482.4 x 607.0 mm
(1.68 (1U) x 18.99 x 23.9 in)
4
Maximum Weight (kg)

19.9 kg (43.87 lb)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 2
Series:

Intel Xeon EP E5-2600 v3



11
Memory
12
Type: DDR4 RDIMM
Number of slots: 12
Maximum RAM 384 GB (12 x 32 GB)
13
Storage
14
Chassis with 4 HDD 2.5" / 3.5":
  • 32 TB (4 x 8 TB NL SAS);
  • 24 TB (4 x 6 TB SATA);
  • 7.2 TB (4 x 1.8 TB SAS);
  • 15.36 TB (4 x 3.84 TB SSD)
Chassis with 8 HDD 2.5":
  • 8 TB (8 x 1 TB NL SAS);
  • 16 TB (8 x 2 TB SATA);
  • 14.4 TB (8 x 1.8 TB SAS);
  • 30.72 TB (8 x 3.84 TB SSD)
Chassis with 10 HDD 2.5":
  • 10 TB (10 x 1 TB NL SAS);
  • 20 TB (10 x 2 TB SATA);
  • 18 TB (10 x 1.8 TB SAS);
  • 38.4 TB (10 x 3.84 TB SSD)
15
Power Supply Unit (PSU)
16
AC PSU
Power capacity (W):
450; 550
Type:
Removable
Quantity:
1
Rated voltage range:
100 to 240 VAC, 50-60 Hz



17
DC PSU

Not supported

18

R430 Datasheet (en)
