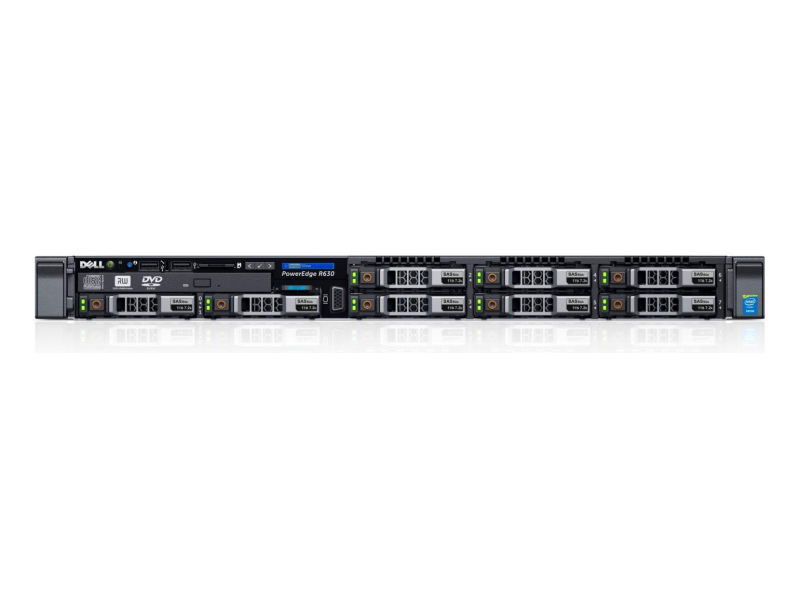

Dell PowerEdge R630
Dell PowerEdge R630 Available to Quote:

Dell PowerEdge R630

 Request a Quote
Description Specifications Additional materials

Dell PowerEdge R630

General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots: 3 slots PCIe 3.0
Network interfaces:

1 network card.

Supported interfaces:

  • 4-Port 1GbE (RJ45);
  • 2-Port 1GbE (RJ45);
  • 2-Port 100M/1/10GbE (SFP+/SFP)
USB ports:
  • 2-Port USB (front panel);
  • 2-Port USB (rear panel);
  • 1-Port USB (internal)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
42.8 (1U) x 482.3 х 700.5
(1.68 (1U) x 18.98 x 27.57 in)
4
Maximum Weight (kg)
Chassis with 8 HDD: 16.9 (37.26 lb)
Chassis with 10 HDD: 18.5 (40.79 lb)
Chassis with 24 HDD: 17.4 (38.36 lb)
5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 2
Series:

Intel Xeon E5-2600 v4
11
Memory
12
Type: DDR4 RDIMM, LRDIMM
Number of slots: 24
Maximum capacity LRDIMM: 3 TB (24 x 128 GB)
Maximum capacity RDIMM: 768 GB (24 x 32 GB)
13
Storage
14
Chassis with 8 HDD 2.5":
  • 16 TB (8 x 2 TB NL SAS);
  • 32 TB (8 x 4 TB SATA);
  • 14.4 TB (8 x 1.8 TB SAS);
  • 25.6 TB (8 x 3.2 TB SSD)
Chassis with 10 HDD 2.5":
  • 20 TB (10 x 2 TB NL SAS);
  • 40 TB (10 x 4 TB SATA);
  • 18 TB (10 x 1.8 TB SAS);
  • 32 TB (10 x 3.2 TB SSD)
Chassis with 24 HDD 1.8":
  • 11.52 TB (24 x 480 GB SSD)
15
Power Supply Unit (PSU)
16
AC PSU
Power capacity (W):
450
Type:
Removable
Quantity:

495W:
750W:
1100W:
2
Rated voltage range:
100 to 240 VAC, 50-60 Hz
17
DC PSU
Power capacity (W):
750; 1100
Type:
Removable
Quantity:
2
Rated voltage range:
-38.4 to -72 VDC



18

R630 Datasheet (en)
