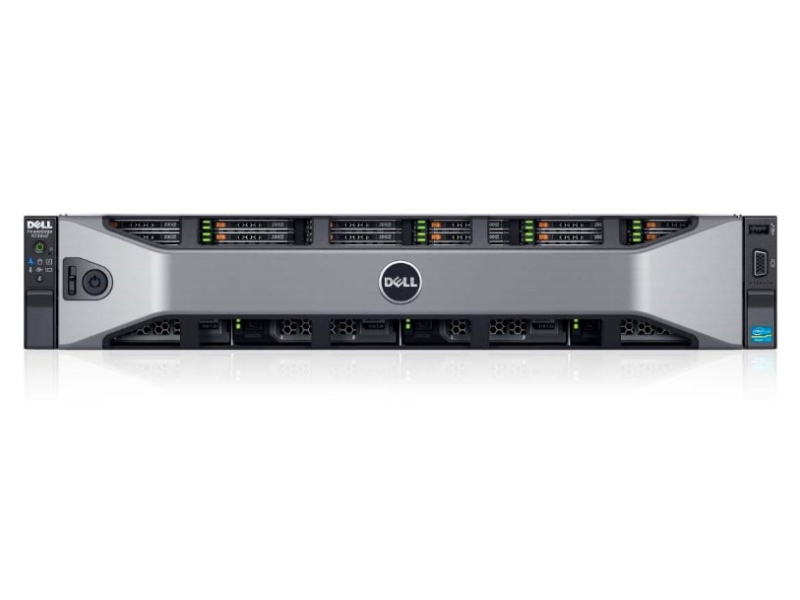

Dell PowerEdge R730xd
Dell PowerEdge R730xd Available to Quote:

Dell PowerEdge R730xd

 Request a Quote
Description Specifications Additional materials

Dell PowerEdge R730xd

General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots: 6 slots PCIe
Network interfaces:

1 network card.

Supported interfaces:

  • 4-Port 1GbE (RJ45);
  • 2-Port 1GbE (RJ45);
  • 2-Port 1GbE (RJ45) + 2-Port 10GbE (SFP+);
  • 2-Port 1GbE (RJ45) + 2-Port 10GbE (RJ45);
  • 4-Port 10GbE (SFP)
USB ports:
  • 2-Port USB (front panel);
  • 2-Port USB (rear panel);
  • 1-Port USB (internal)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
87.3 (2U) x 444.0  х 723.0
(3.44 (2U) x 17.49 x 28.46 in)
4
Maximum Weight (kg)
Chassis with 2.5": 29,5 (64.9 lb)

Chassis with 3.5":

 32,5 (71.5 lb)



5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 2
Series: Intel Xeon E5-2600 v4
11
Memory
12
Type: DDR4 LRDIMM
Number of slots: 24
Maximum capacity: 3 TB (24 x 128 GB)
13
Storage
14
Chassis with 26 HDD (24 x 2.5" front HDD + 2 x 2.5" rear HDD):
  • 46.8 TB (24 x 1.8 TB SAS + 2 x 1.8 TB SAS)
  • 26 TB (24 x 1.0 TB SATA + 2 x 1.0 TB SATA)
  • 52 TB (24 x 2 TB NL SAS + 2 x 2 TB NL SAS)
  • 41.6 TB (24 x 1.6 TB SAS SSD + 2 x 1.6 TB SAS SSD)
Chassis with 14 HDD (12 x 3.5" front HDD + 2 x 2.5" rear HDD):
  • 99.6 TB (12 x 8 TB NL SAS + 2 x 1.8 TB SAS)
Chassis with 26 HDD (8 x 3.5" + 18 x 1.8" front HDD + 2 x 2.5" rear HDD):
  • 84.88 TB (8 x 8 TB NL SAS + 18 x 960 GB SATA SSD + 2 x 1.8 TB SAS )



15
Power Supply Unit (PSU)
16
AC PSU
Power capacity (W):
450
Type:
Removable
Quantity:

495W:
750W:
1100W:
2
Rated voltage range:
100 to 240 VAC, 50-60 Hz



17
DC PSU
Power capacity (W):
1100
Type:
Removable
Quantity:
2
Rated voltage range:
-38.4 to -72 VDC



18

R730xd Datasheet (en)

Similar Products
Recently viewed

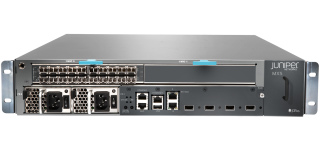

Router Juniper MX5 Router Juniper MX5
