Dell PowerEdge R930
Dell PowerEdge R930 Available to Quote:

Dell PowerEdge R930

 Request a Quote
Description Specifications Additional materials

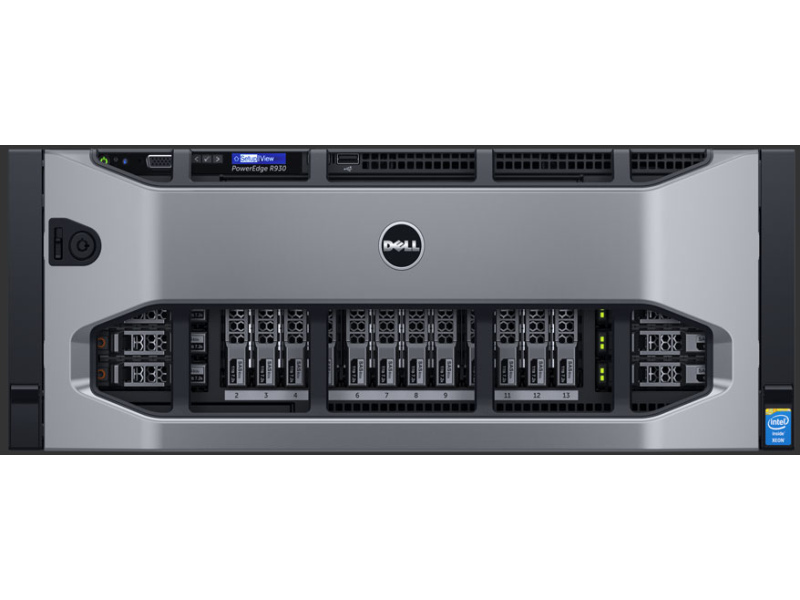

Dell PowerEdge R930

General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots: 10 slots PCIe
Network interfaces:
  • 4-Port 1GbE (RJ45);
  • 2-Port 1GbE (RJ45) + 2-Port 10GbE (RJ45);
  • 2-Port 1GbE (SFP) + 2-Port 10GbE (SFP+);
  • 2-Port 10GbE (SFP+);
USB ports:
  • 2-Port USB (front panel);
  • 2-Port USB (rear panel);
  • 1-Port USB (internal)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
172.6 (4U) x 482.4 x 802.3
(6.8 (4U) x 18.99 x 31.59 in)
4
Maximum Weight (kg)

59 (130.07 lb)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 4
Series: Intel Xeon E7-8800 v4 and E7-4800 v4
11
Memory
12
Type:

DDR4 RDIMM, LRDIMM
Number of slots: 96
Maximum capacity: 12 TB (96 x 128 GB)



13
Storage
14
Chassis with 24 HDD 2.5":
  • 43.2 TB (24 x 1.8 TB SAS);
  • 24 TB (24 x 1.0 TB NL-SAS);
15
Power Supply Unit (PSU)
16
AC PSU
Power capacity (W):
750; 1100
Type:
Removable
Quantity:

750W:
1100W:
2
Rated voltage range:
100 to 240 VAC, 50-60 Hz



17
DC PSU

Not supported

18

R930 Datasheet (en)
