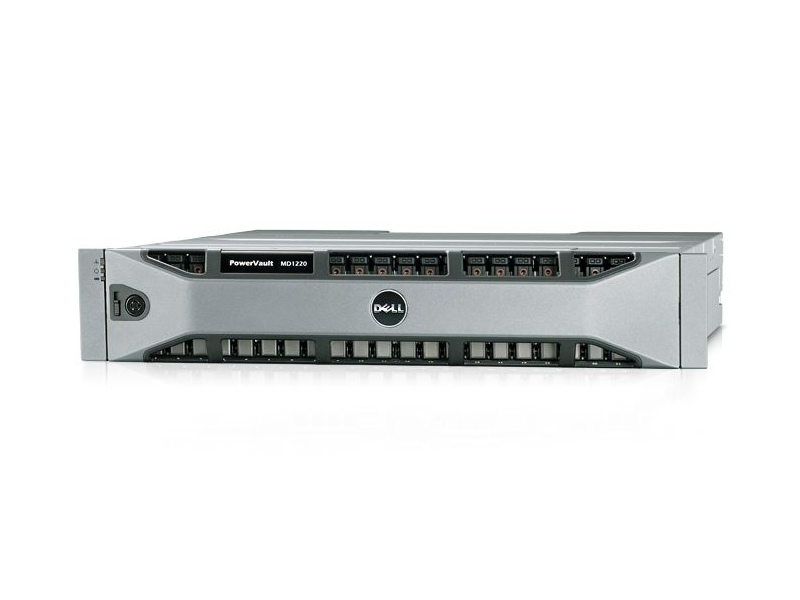

Dell PowerVault MD1220
Dell PowerVault MD1220 Available to Quote:

PowerVault MD1220  Storage

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1

Network interfaces:
  • 1-Port SAS (SFF 8088) IN;
  • 1-Port SAS (SFF 8088) OU;
  • 1-Port 6-pin UART mini-DIN connector
2
Physical Parameters
3
Dimensions (HxWxD) (mm)

87 (2U) x 482 x 541

(3.39 (2U) x 18.98 x 29.1 in)

4
Maximum Weight (kg)

23,31 (51 lb)

5
Environmental Conditions
6
Relative Humidity (%)

10 to 85

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
Storage
10
Disk Enclosure with 24 HDD 2.5":
  • 48 TB (24 x 2 TB SAS 7.2K);
  • 43.2 TB (24 x 1.8 TB SAS 10K);
  • 19.2 TB (24 x 800 GB SSD)



11
Power Supply Unit (PSU)
12
AC PSU

2 x 600 W

13
DC PSU

2 x 700 W

14

PowerVault MD1220 Datasheet (en)
