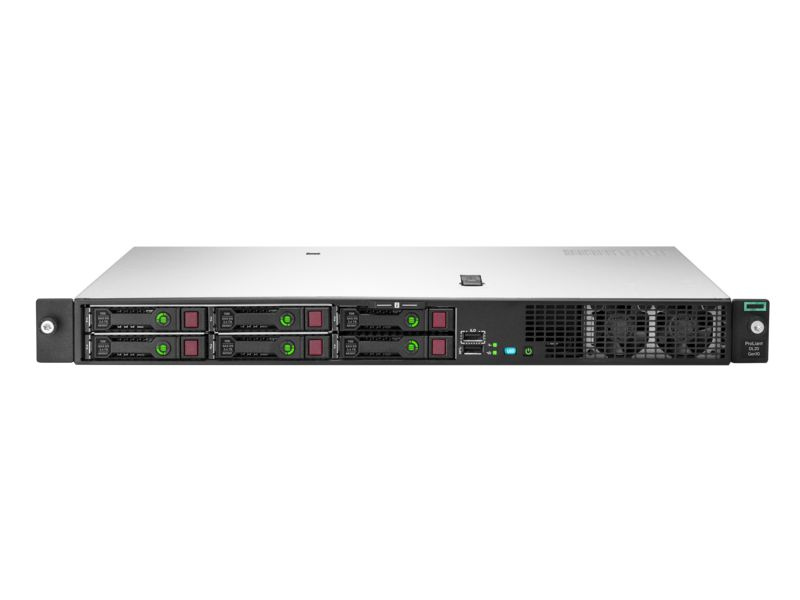

HPE ProLiant DL20 Gen10
HPE ProLiant DL20 Gen10 Available to Quote:

ProLiant DL20 Gen10

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Serial interfaces: Not Supported
Videointerfaces: 1-Port VGA
Expansion slots:
  • 1 slot PCIe 3.0 x8;
  • 1 slot PCIe 3.0 x16
Network interfaces: 2-Port 1GbE (RJ45)
MicroSD slots: 1
USB ports:
  • 2-Port USB (front panel);
  • 2-Port USB (rear panel);
  • 1-Port USB (internal)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
43.2 (1U) x 434.6 х 382.2
(1.7 (1U) x 17.11 x 15.05 in
4
Maximum Weight (kg)

9.46 (19,84 lb)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 1
Series: Intel Xeon E-2134



11
Memory
12
Type: DDR4 UDIMM
Number of slots: 4
Maximum capacity: 64 GB (4 x 16 GB)
13
Storage
14
Hot Plug SFF SAS HDD 14,4 ТB (4 + 2 x 2,4 TB)
Hot Plug SFF SATA HDD 12 ТB (4 + 2 x 2,0 TB)
Hot Plug SFF SAS SSD 91,8 ТB (4 + 2 x 15,3 TB)
Hot Plug SFF SATA SSD 23,04 ТB (4 + 2 x 3,84 TB)
Hot Plug LFF SAS HDD 24 TB (2 x 12 TB)
Hot Plug LFF SATA HDD 24 TB (2 x 12 TB)
Hot Plug LFF SAS SSD 1,6 ТB (2 x 800 GB)
Hot Plug LFF SATA SSD 3,84 TB (2 x 1,92 TB)
15
Power Supply Unit (PSU)
16
AC PSU
Power capacity (W):
290; 500
Type:
Removable
Quantity:
1
Rated voltage range:
100 to 240 VAC, 50-60 Hz
17
Постоянного тока (англ. DC)

1 x 800 Вт

18
DC PSU
Power capacity (W):
800
Type:
Removable
Quantity:
1
Rated voltage range:
-48 to -60 VDC
19

DL20 Gen10 Datasheet (en)

Similar Products
Recently viewed

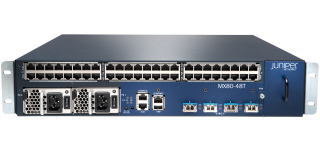

Switch Huawei CloudEngine 6875-48S4CQ-EI Switch Huawei CloudEngine 6875-48S4CQ-EI Dell PowerEdge R530 Dell PowerEdge R530 Router Juniper MX80-48Т Router Juniper MX80-48Т Huawei FusionServer X6800 Huawei FusionServer X6800 Dell PowerEdge R630 Dell PowerEdge R630 Switches Juniper QFX5200-32C Switches Juniper QFX5200-32C Switch Huawei CloudEngine 7850 Switch Huawei CloudEngine 7850 Switch Huawei CloudEngine 7855 Switch Huawei CloudEngine 7855 IP Camera Huawei IPC6324-MIF IP Camera Huawei IPC6324-MIF Huawei FusionServer 1288H V5 Huawei FusionServer 1288H V5 Dell PowerEdge R930 Dell PowerEdge R930 Switch Extreme Networks BD X8 Switch Extreme Networks BD X8 VoIP Gateway Grandstream HT502 VoIP Gateway Grandstream HT502
