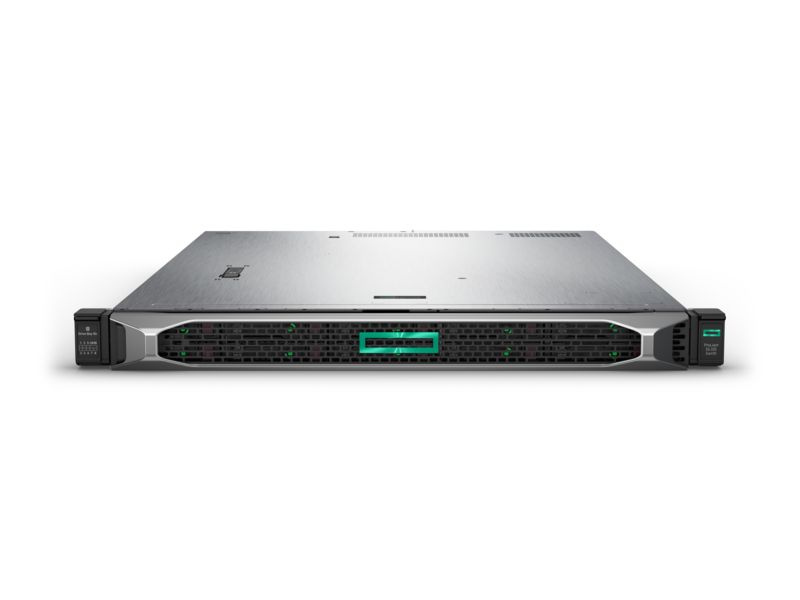

HPE ProLiant DL325 Gen10
HPE ProLiant DL325 Gen10 Available to Quote:

HPE ProLiant DL325 Gen10

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 1-Port VGA
Expansion slots:
  • 2 slots PCIe 3.0 x8;
  • 1 slot PCIe 3.0 x16
Network interfaces:
  • 4-Port 1GbE (RJ45)
  • 1-Port console (RJ45)
  • 1-Port management 1GbE
MicroSD slots: 1
USB ports:
  • 1 x USB (front panel);
  • 2 x USB (rear panel);
  • 1 x USB (internal)



2
Physical Parameters
3
Dimensions (HxWxD) (mm)

42,9 (1U) x 434,6 х 614,9

(1,68 x 17,11 x 24,20 in)

4
Maximum Weight (kg)

10,7 (23,58 lb)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 1
Series: AMD EPYC 7000



11
Memory
12
Type: DDR4 RDIMM or LRDIMM
Number of slots: 16
Maximum capacity LRDIMM: 2,0 TB (16 x 128 GB)
Maximum capacity RDIMM: 1,0 GB (16 x 64 GB)
13
Storage
14
Hot Plug SFF SAS  24,0 ТB (8+2 x 2,4 ТB with optional drive module)
Hot Plug SFF SATA 20,0 ТB (8+2 x 2 TB with optional drive module)
Hot Plug LFF SAS 56 ТB (4 х 14 ТB)
Hot Plug LFF SATA 56 ТB (4 х 14 ТB)
Hot Plug SFF SAS SSD 153 ТB (8+2 x 15,3 ТB with optional drive module)
Hot Plug LFF SATA SSD 7,68 ТB (4 x 1,92 ТB)
Hot Plug SFF SATA SSD 76,8 ТB (8+2 x 7,68 ТB)
Hot Plug SFF NVMe PCIe SSD 76,8 ТB (8+2 x 7,68 ТB) with optional drive module)



15
Power Supply Unit (PSU)
16
AC PSU
  • 2 x 500 W
  • 1 x 800 W
17
DC PSU
  • 1 x 1600 W
18

DL325 Gen10 Datasheet (en)
