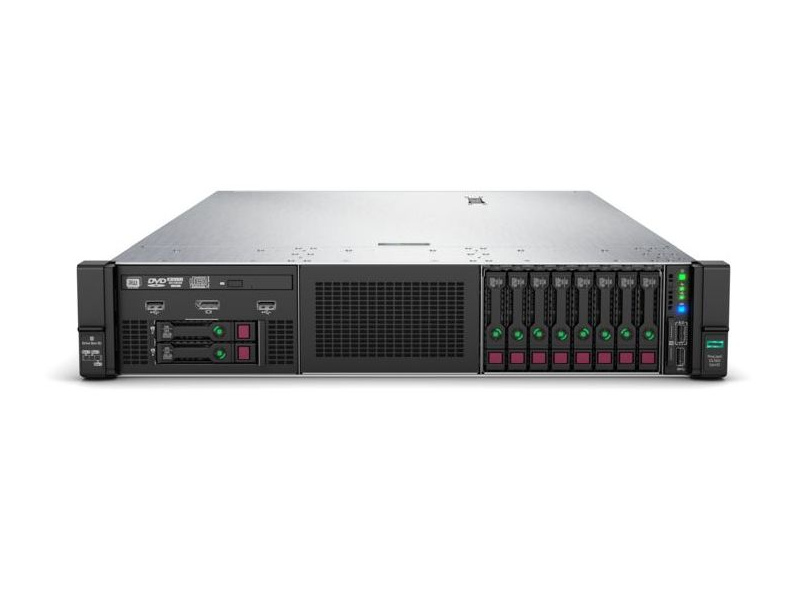

HPE ProLiant DL560 Gen10
HPE ProLiant DL560 Gen10 Available to Quote:

ProLiant DL560 Gen10

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Serial interfaces:
  • 1
Videointerfaces:
  • 2-Port VGA (additional 1 x VGA port with Media Bay installed)
Expansion slots:
  • 4 slots PCIe 3.0 x 8;
  • 4 slot PCIe 3.0 x 16
Network interfaces:
  • 1 network card.
  • Supported interfaces:
  • 4-Port 1GbE (RJ45);
  • 1-Port management 1GbE;
  • 1-Port console iLO
MicroSD slots:
  • 1
USB ports:
  • 2-Port USB 2.0 (front panel);
  • 2-Port USB 2.0 (rear panel);
  • 1-Port USB 3.0 (front panel);
  • 2-Port USB 3.0 (rear panel);
  • 2-Port USB 3.0 (internal)



2
Physical Parameters
3
Dimensions (HxWxD) (mm)

87,5 (2U) x 445,5 х 754,7

(3,42 x 17,51 x 29,71 in)

4
Maximum Weight (kg)

34,12 (74,95 lb)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

10 to 35 (50 to 95°F)

8
9
CPU
10
Quantity: 1,2 or 4
Series: Intel Xeon E5-4600 v4/v3



11
Memory
12
Type: DDR4 RDIMM / LRDIMM
Number of slots: 48
Maximum capacity with 1st generation processors
Maximum capacity LRDIMM: 6 ТB (48 x 128 GB)
Maximum capacity RDIMM: 1,5 TB (48 х 32 GB)
Maximum capacity NVDIMM: 384 GB (24 x 16 GB)

Maximum capacity with 2st generation processors
Maximum capacity: 12 TB (24 x 512 GB)
Maximum capacity LRDIMM: 6 TB (48 x 128 GB)
Maximum capacity RDIMM:
1,5 TB (24 x 64 GB)
3 TB (48 x 64 GB)



13
Storage
14
Hot Plug SFF SATA 48 ТB (24 x 2 ТB)
Hot Plug SFF SAS 58 ТB (24 x 2,4 ТB)
Hot Plug SFF SATA SSD 184 ТB (24 x 7,68 ТB)
Hot Plug SFF SAS SSD 367 ТB (24 x 15,3 ТB)
SFF NVMe SSD 184 ТB (12 x 15,36 TB)



15
Power Supply Unit (PSU)
16
AC PSU

3 х 1600 W

17
DC PSU

2 х 800 W

18

DL560 Gen10 Datasheet (en)
