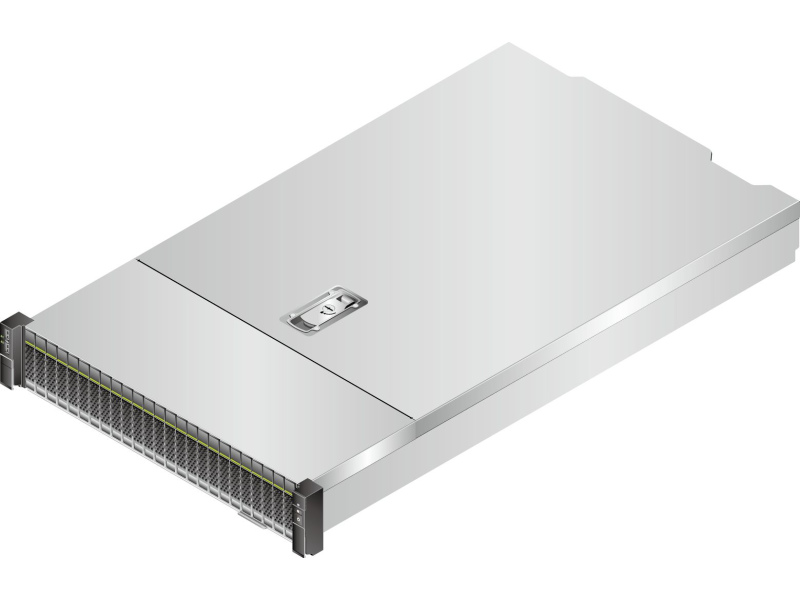

Huawei FusionServer 2488H V5
Huawei FusionServer 2488H V5 Available to Quote:

FusionServer Pro 2488H V5

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots:

11 slots PCIe
Network interfaces:

1 network card.

Supported interfaces:

  • 2-Port 10GbE (RJ45);
  • 2-Port 1GbE (RJ45)
USB ports:
  • 2-Port USB 2.0;
  • 2-Port USB 3.0
SD Card slots:

2 slots for SD card



2
Physical Parameters
3
Dimensions (HxWxD) (mm)

86,1 (2U) x 447 x 748

(3.44 (2U) x 17.60 x 29.45 in)

4
Maximum Weight (kg)

30 (66.15 lb)

5
Environmental Conditions
6
Relative Humidity (%)

10 to 90

7
Operating Temperature (°C)

5 to 45 (41 to 113°F)

8
9
CPU
10

Quantity:

 2 or 4

Series:

 Intel Xeon Scalable (5100/6100/8100)
11
Memory
12
Type: DDR4 DIMM

Number of slots:

 48

Maximum capacity:
2933 MT/s
24 DCPMM, 2666 МТ/s



13
Storage
14
Chassis with 8 HDD 2.5":
  • 8 x 2,5 SAS/SATA;
  • 8 х 2,5 NVMe SSDs
Chassis with 16 HDD 2.5":
  • 16 x 2,5 SAS/SATA
Chassis with 24 HDD 2.5":
  • 24 x 2,5 SAS/SATA
Chassis with 25 HDD 2.5":
  • 25 х 2,5 SAS/SATA
Flash memory:
  • 2 HDD SSD M.2



15
Power Supply Unit (PSU)
16
AC PSU
  • 2 х 900 W;
  • 2 x 1500 W;
  • 2 x 2000 W
17
DC PSU
  • 900 х W;
  • 2 x 1500 W;
  • 2 х 1200 W
18

Datasheet 2488 V5 (en)
