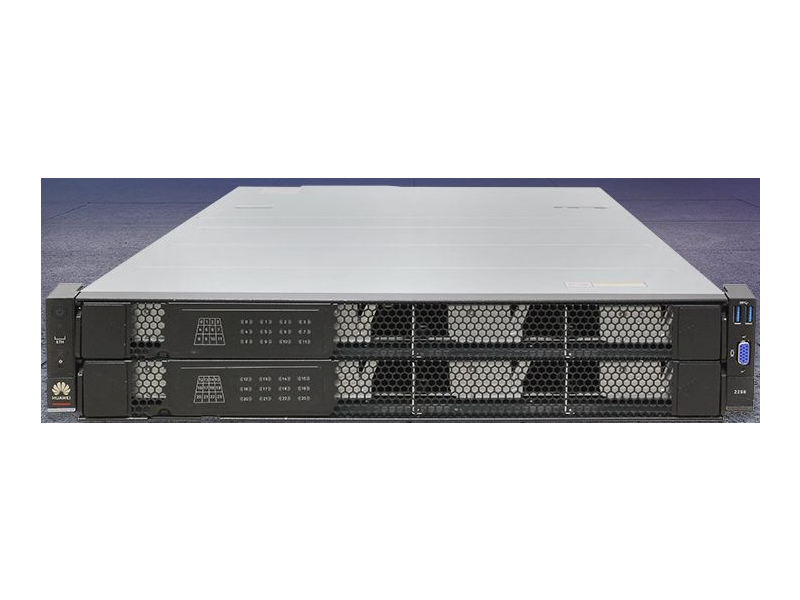

Huawei FusionServer 2298 V5
Huawei FusionServer 2298 V5 Available to Quote:

FusionServer Pro 2298 V5

 Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Serial interfaces: 1
Videointerfaces: 2-Port VGA
Expansion slots:

5 slots PCIe
Network interfaces:

1 network card OCP2

Supported interfaces:

  • 2-Port GbE (RJ45);
  • 2-Port 10GbE (RJ45)
USB ports:
  • 2-Port USB 2.0;
  • 2-Port USB 3.0
SD Card slots:
  • 2 slots for SD card



2
Physical Parameters
3
Dimensions (HxWxD) (mm)

 86,1 x 447 x 890

3,44 (2U) x 17,60 x 35,03 in)

4
Maximum Weight (kg)

30 (66.15 lb)

5
Environmental Conditions
6
Relative Humidity (%)

10 to 90

7
Operating Temperature (°C)

5 to 35 (41 to 95°F)

8
9
CPU
10

Quantity:

 1 or 2
Series: Intel Xeon Scalable серии (3100/4100/5100/6100/8100)



11
Memory
12

Type:

 DDR4 2933 MT/с

Number of slots:

 12
13
Storage
14
Chassis with 24 HDD 3.5" :
  • 24 x 3,5'' SAS/SATA (front panel)
Chassis with 4 HDD 2.5":
  • 4 х 2,5" SAS/SATA/NVMe (rear panel)
Flash memory:

2 disks SSD M.2



15
Power Supply Unit (PSU)
16
AC PSU
  • 2 х 900 W
  • 2 х 1 500 W
17
DC PSU

2 х 1500 W

18

Datasheet 2298 (en)
