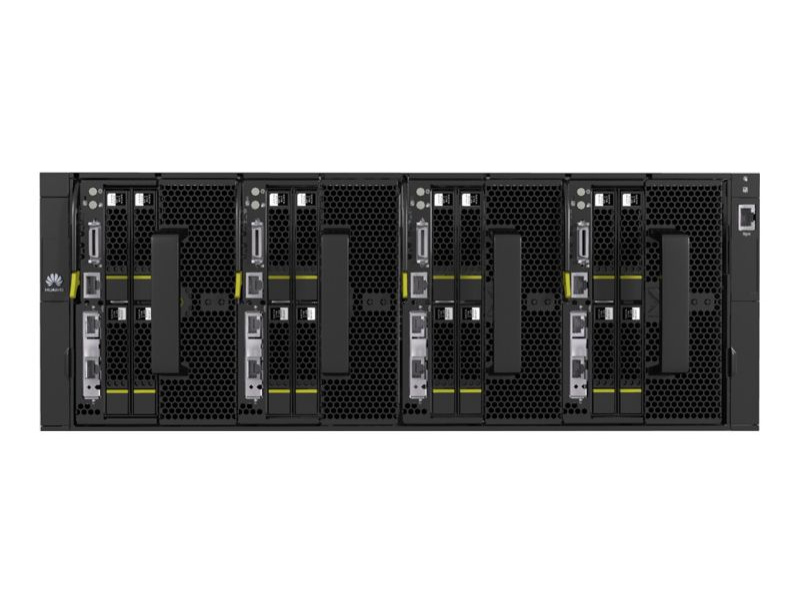

FusionServer X6800 Data Center Server
FusionServer XH628 V5 Node
Request a Quote|
Serial interfaces:
|
1
|
|
Videointerfaces:
|
Not Supported
|
|
Expansion slots:
|
8 slots PCIe x8
|
|
Network interfaces:
|
1-Port 1GbE (RJ45) (Front panel management);
1-Port 1GbE (RJ45) (Rear panel management)
|
|
USB ports:
|
Not Supported
|
|
X6800 Chassis:
|
175 (4U) x 448 х 898
(6.89 (4U) x 17.64 x 35.35 in)
|
|
XH628 V5 Node:
|
166 (4U) x 109 х 745
(6.53 (4U) x 4.29 x 29.3 in)
|
|
Fully-configured with XH628 V5:
|
109 (240.35 lbs)
|
10 to 90
5 to 40 (41 to 104°F)
|
Form factor:
|
2 slots
|
|
CPU:
|
1 or 2 (Intel Xeon E5-2600 v3/v4 processors)
|
|
Memory:
|
16 DDR4 DIMM slots
|
|
Storage:
|
12 x 3.5" SAS/SATA HDD or 2.5" SAS/SATA/SSD HDD;
2 x 2.5" SATA/SSD HDD (optional);
2 miniSSD (SATADOM);
1 USB flash drive
|
|
Expansion slots:
|
5 x PCIe slots
|
|
Network interfaces:
|
|
|
Power capacity (W):
|
750; 1200; 1500
|
|
Type:
|
Removable
|
|
Quantity:
|
4
|
|
Rated voltage range:
|
100 to 240 VAC, 50-60 Hz
|
|
Power capacity (W):
|
800; 1200
|
|
Type:
|
Removable
|
|
Quantity:
|
4
|
|
Rated voltage range:
|
-48 to -60 VDC
|
