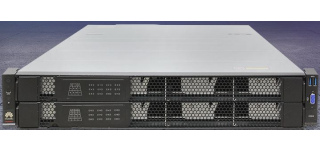

Huawei OceanStor 2600 V3

Huawei OceanStor 2600 V3 Available to Quote:

Request a Quote

Description Specifications Additional materials

General All

Interfaces

Network interfaces:

Physical Parameters

Dimensions (HxWxD) (mm)

Controller Enclosure with 12 HDD: Controller Enclosure with 25 HDD:	86,1 (2U) x 447 x 488 (3.29 (2U) x 17.60 x 19.21 in)
Disk Enclosure with 24 HDD 2.5": Disk Enclosure with 25 HDD 3.5":	86,1 (2U) x 447 x 488 (3.29 (2U) x 17.60 x 19.21 in)
Disk Enclosure with 75 HDD 3.5":	175 (4U) x 447 x 488 (6.89 (4U) x 17.60 x 19.21 in)

Maximum Weight (kg)

Controller Enclosure with 12 HDD: Controller Enclosure with 25 HDD:	24 (53 lb)
Disk Enclosure with 24 HDD 2.5":	20 (44 lb)
Disk Enclosure with 25 HDD 3.5":	44 (97 lb)
Disk Enclosure with 75 HDD 3.5":	91 (200.66 lb)

Environmental Conditions

Relative Humidity (%)

5 to 90

Operating Temperature (°C)

5 to 40 (41 to 104°F)

Storage

Controller Enclosure with 12 HDD:	21.6 TB (12 x 1.8 TB SAS); 96 TB (12 x 8 TB NL-SAS); 43.2 TB (12 x 3.6 TB SSD) 5670 TB (with 21 Expansion Disk Enclosures)
Controller Enclosure with 25 HDD:	45 TB (25 x 1.8 TB SAS); 200 TB (25 x 8 TB NL-SAS); 90 TB (25 x 3.6 TB SSD) 5670 TB (with 21 Expansion Disk Enclosures)
Disk Enclosure with 24 HDD 2.5":	43.2 TB (24 x 1.8 TB SAS); 192 TB (24 x 8 TB NL-SAS); 86.4 TB (24 x 3.6 TB SSD)
Disk Enclosure with 25 HDD 3.5":	45 TB (25 x 1.8 TB SAS); 200 TB (25 x 8 TB NL-SAS); 90 TB (25 x 3.6 TB SSD)
Disk Enclosure with 75 HDD 3.5":	135 TB (75 x 1.8 TB SAS); 600 TB (75 x 8 TB NL-SAS); 270 TB (75 x 3.6 TB SSD)

Power Supply Unit (PSU)

AC PSU

2 x 800 W

DC PSU

2 x 600 W
