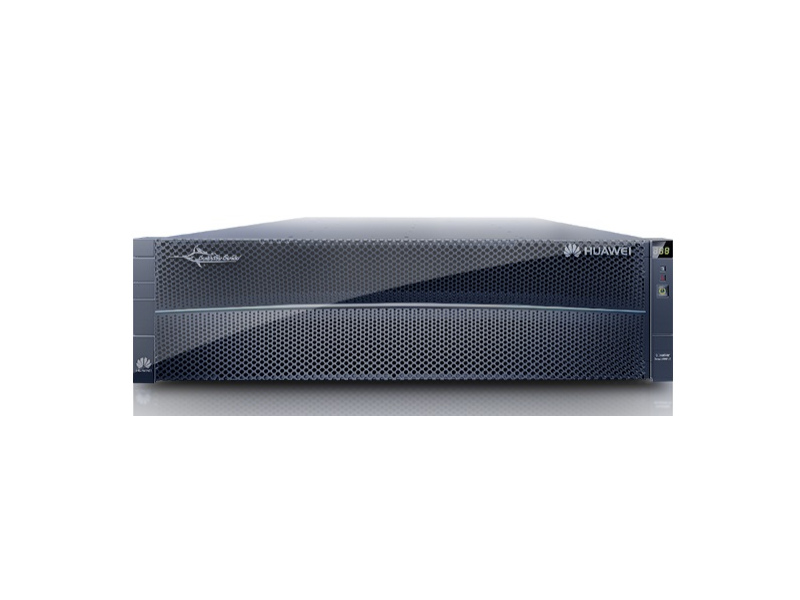

Huawei OceanStor 2800 V5 Available to Quote:

OceanStor 2800 V5

Request a Quote
Description Specifications Additional materials
General All
Interfaces
1
Network interfaces:
  • 4-Port SmartIO module (8 GbE / 16GbE / 10GbE) FC;
  • 4-Port 10GbE (RJ45) iSCSI;
  • 4-Port 1GbE (RJ45) iSCSI;
  • 4-Port 12GbE (SFF-8644) miniSAS HD



2
Physical Parameters
3
Dimensions (HxWxD) (mm)
4
Controller Enclosure:
86.1 (2U) x 447 x 748
(3.39 (2U) x 17.60 x 29.45 in)
Disk Enclosure with 24 HDD 3.5" (common disk enclosure):
175 (4U) x 447 x 488
(6.89 (4U) x 17.60 x 19.21 in)
Disk Enclosure with 75 HDD 3.5" (high-density disk enclosure):
176.5 (4U) x 446 x 974
(6.95 (4U) x 17.56 x 38.35 in)



5
Maximum Weight (kg)
6
Controller Enclosure: 42 (95.59 lb)
Disk Enclosure with 24 HDD 3.5" (common disk enclosure): 44 (97.00 lb) (without disks)
Disk Enclosure with 75 HDD 3.5" (high-density disk enclosure): 105 (231.48 lb) (without disks)



7
Environmental Conditions
8
Relative Humidity (%)

10 to 90%

9
Operating Temperature (°C)

5 to 40 (41 to 104°F)

10
Memory
11
Type: DDR4 RDIMM / LRDIMM
Number of slots: 16
Maximum capacity: 1 ТБ (16 x 64 ГБ)
12
Storage
13
Controller Enclosure with 12 HDD 3.5":
  • 7.2 TB (12 x 600 GB SAS);
  • 48 TB (12 x 4 TB NL-SAS);
  • 120 TB (12 x 10 TB SATA)
  • 7200 TB (with 30 Common Disk Enclosures)
  • 7500 TB (with 10 High-density Disk Enclosures)
Disk Enclosure with 24 HDD 3.5" (common disk enclosure):
  • 14 TB (24 x 600 GB SAS);
  • 96 TB (24 x 4 TB NL-SAS);
  • 240 TB (24 x 10 TB SATA)
Disk Enclosure with 75 HDD 3.5" (high-density disk enclosure):
  • 45 TB (75 x 600 GB SAS);
  • 300 TB (75 x 4 TB NL-SAS);
  • 750 TB (75 x 10 TB SATA)

14
Power Supply Unit (PSU)
15
AC PSU
  • 2 x 800 W
  • 2 x 960 W
16
DC PSU

Not supported

17
