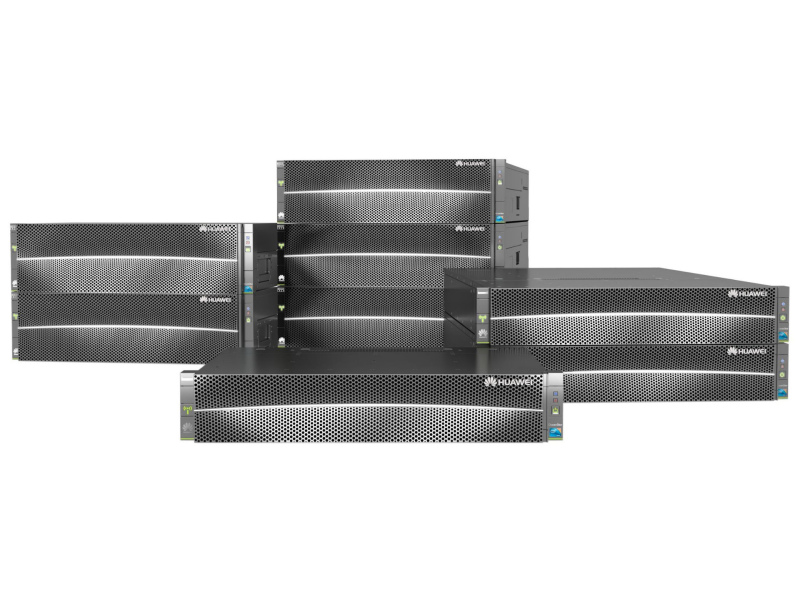

Huawei OceanStor 5600F/5800F Available to Quote:
Huawei OceanStor 5600F V5;
Huawei OceanStor 5800F V5
Request a Quote
Description Specifications Additional materials
General All
Interfaces
1

Network interfaces:

  • 4-Port 1GbE (SFP);
  • 4-Port 10GbE (RJ45);
  • 4-Port 8GbE (SFP) FC;
  • 8-Port 8GbE (SFP) FC;
  • 8-Port 16GbE (QSFP+);
  • 2-Port 10GbE FCoE;
  • 2-Port 40GbE (QSFP28);
  • 2-Port 100GbE (QSFP28);
  • 4-Port 12GbE (SAS 3.0);
  • 4-Port 10GbE Smart I/O (8GbE / 10GbE / 16GbE);
  • 2-Port 56GbE (InfiniBand interface module)



2
Physical Parameters
3
Dimensions (HxWxD) (mm)
Controller Enclosure:
130,5 (3U) х 447 х 750
(5,11 x 17,59 x 29,52 in)
Disk Enclosure:
86,1 (2U) x 447 x 490
(3,38 x 17,59 x 19,29 in)
4
Maximum Weight (kg)
Controller Enclosure (3U):
50 (110 lb)
Disk Enclosure (2U):  20 (44,09 lb)



5
Environmental Conditions
6
Relative Humidity (%)

5 to 90

7
Operating Temperature (°C)

5 to 40  (41 to 104°F)

8
9
Storage
10
Maximum controllers: 8
Maximum disks SSD 2,5":
OceanStor 5600F V5: 1200 (25 х 2,5" expansion shelves)
OceanStor 5800F V5: 1500 (25 х 2,5" expansion shelves)
11
Power Supply Unit (PSU)
12
AC PSU

2 x 800 W

13
DC PSU

Not supported

14
