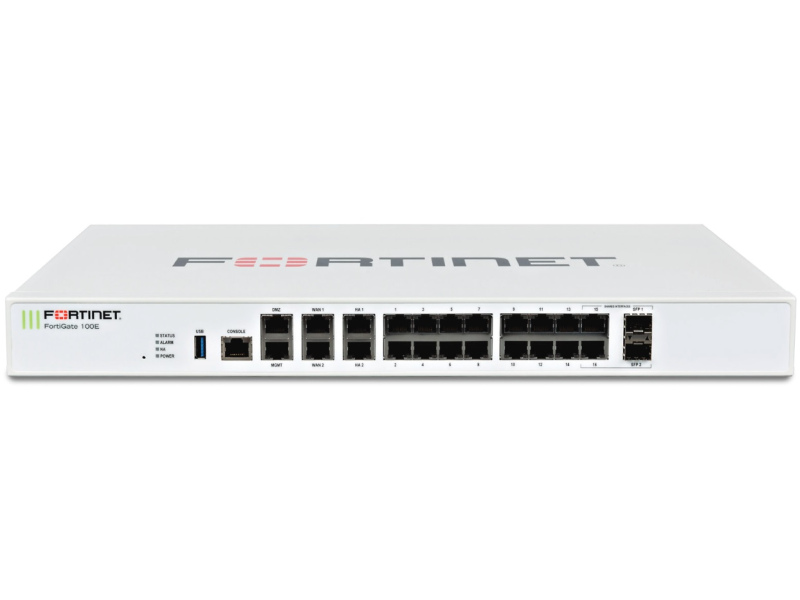

Firewall Fortinet FortiGate 100E Series

Firewall Fortinet FortiGate 100E Series Available to Quote:

FortiGate 100E; FortiGate 101E;

FortiGate 100EF; FortiGate 140E;

FortiGate 140E-PoE

Request a Quote

Description Specifications Additional materials

The FortiGate 100E Series is the next generation of firewalls for medium and large enterprises.

FortiGate 100E gateways support extensive routing, switching, and security functions.

General All

Interfaces

FortiGate 100E:	14-Port 1GbE (RJ45); 2-Port combo 1GbE (RJ45/SFP); 2-Port HA 1GbE (RJ45); 2-Port 1GbE (RJ45) WAN; 2-Port MGMT/DMZ 1GbE (RJ45); 1-Port console (RJ45); 1-Port RPS; 1-Port USB
FortiGate 101E:	14-Port 1GbE (RJ45); 2-Port combo 1GbE (RJ45/SFP); 2-Port HA 1GbE (RJ45); 2-Port 1GbE (RJ45) WAN; 2-Port MGMT/DMZ 1GbE (RJ45); 1-Port console (RJ45); 1-Port USB; 1-Port RPS; 480 GB SSD local storage
FortiGate 100EF:	8-Port 1GbE (RJ45); 8-Port 1GbE (SFP); 2-Port HA 1GbE (RJ45); 2-Port 1GbE (RJ45) WAN; 2-Port MGMT/DMZ 1GbE(RJ45); 1-Port console (RJ45); 1-Port USB; 1-Port RPS
FortiGate 140E:	38-Port 1GbE (RJ45); 2-Port DMZ 1GbE (SFP); 2-Port 1GbE (RJ45) WAN; 2-Port MGMT/HA 1GbE (RJ45); 1-Port console (RJ45); 1-Port USB; 1-Port RPS
FortiGate 140E-PoE:	24-Port 1GbE (RJ45) PoE; 14-Port GbE (RJ45); 2-Port DMZ 1GbE (SFP); 2-Port 1GbE (RJ45) WAN; 2-Port MGMT/HA 1GbE (RJ45); 1-Port console (RJ45); 1-Port USB; 1-Port RPS

Physical Parameters

Dimensions (HxWxD) (mm)

FortiGate 100E: FortiGate 101E: FortiGate 100EF:	44.45 (1U) x 432 x 254 mm (1.75 (1U) x 17 x 10 in)
FortiGate 140E: FortiGate 140E-PoE:	44.45 (1U) x 432 x 394 mm (1.75 (1U) x 17 x 15.5 in)

Maximum Weight (kg)

FortiGate 100E: FortiGate 101E: FortiGate 100EF:	3.3 kg (7.28 lbs)
FortiGate 140E: FortiGate 140E-PoE:	5.6 kg (12.4 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 50°C (32 to 122°F)

Maximum Power Consumption (W)

FortiGate 100E:	25.5
FortiGate 101E:	27.5
FortiGate 100EF:	26.9
FortiGate 140E:	40.0
FortiGate 140E-PoE:	500.0

Performance

Firewall throughput (64 Byte) (Gbit/s):	4.4
Firewall throughput (Mp/s):	6.6
Maximum concurrent sessions:	2M
Connections per second:	30,000
Maximum security policies:	10,000
IPsec VPN throughput (Gbit/s):	4.0
IPsec VPN tunnels:	10,000
IPS throughput (Gbit/s):	1.9
Application Control throughput (Gbit/s):	1.0

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	RPS
Quantity:	1
Rated voltage range:	12 VDC

Compatible Expansion Cards

Not supported

FortiGate 100E Datasheet (en)

Fortinet Product Matrix (en)
