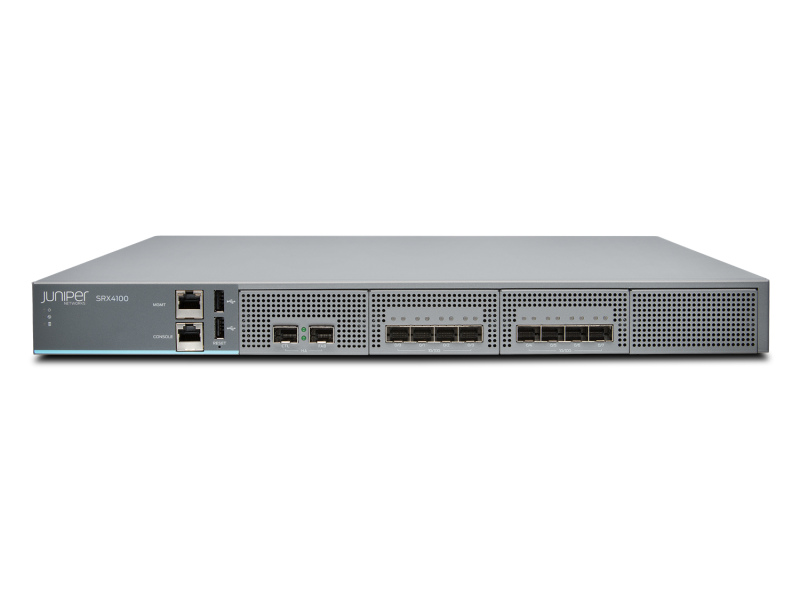

Firewall Juniper SRX4000 Series

Firewall Juniper SRX4000 Series Available to Quote:

SRX4100;

SRX4200

Request a Quote

Description Specifications Additional materials

The SRX4000, the next generation of high-performance firewalls, provides fast, scalable protection for data centers, campus networks, mobile and cloud providers.

The hardware and software architecture of the SRX4000 delivers 20GbE / 40GbE efficient performance in a compact 1U form factor.

The SRX4000 Series provides robust security and advanced threat mitigation capabilities and integrates Carrierclass routing on a single platform.

General All

Interfaces

SRX4100:

SRX4200:

8-Port 1/10GbE (SFP/SFP+);
1-Port management 1GbE (RJ45);
2-Port HA 1GbE/10GbE (SFP/SFP+);
1-Port console (RJ45);
2-Port USB 2.0;
240 GB SSD local storage

Physical Parameters

Dimensions (HxWxD) (mm)

43.1 (1U) x 443.9 x 635 mm

(1.7 (1U) x 17.48 x 25.0 in)

Maximum Weight (kg)

13.5 kg (29 lbs)

Environmental Conditions

Relative Humidity (%)

5 to 90

Operating Temperature (°C)

0 to 40 (32 to 104 °F)

Maximum Power Consumption (W)

650

Performance

Firewall throughput IMIX (Gbit/s):	SRX4100: 20 SRX4200: 40
Firewall throughput (64 Byte) (Gbit/s):	SRX4100: 5 SRX4200: 10
Maximum concurrent sessions:	SRX4100: 5M SRX4200: 10M
Connections per second:	SRX4100: 175,000 SRX4200: 350,000
Maximum security policies:	60,000
IPsec VPN throughput IMIX (Gbit/s):	SRX4100: 5 SRX4200: 9.6
IPS throughput (Gbit/s):	SRX4100: 10 SRX4200: 20
Application Control throughput (Gbit/s):	SRX4100: 18 SRX4200: 35

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

Compatible Expansion Cards

Not supported

SRX4000 Datasheet (en)
