Fortinet FortiGate 3700D Series Available to Quote:

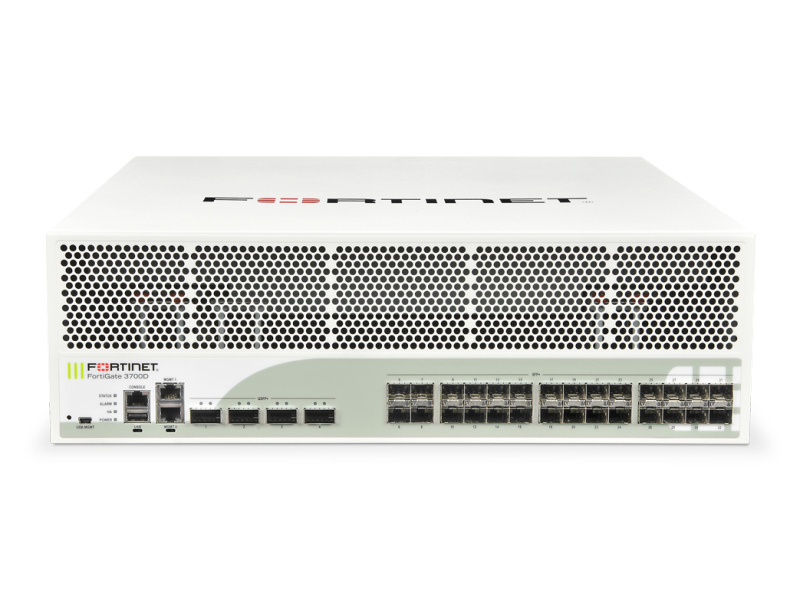

FortiGate 3700D

FortiGate 3700D-DC

Request a Quote
Description Specifications Additional materials

The FortiGate 3700D Series provides high-performance threat protection and SSL verification for large enterprises and service providers, as well as enterprise / cloud deployment flexibility in data centers or internal segments.

FortiGate 3700D gateways with high 10GbE, 40GbE port density provide superior security performance and 165 Gbit / s high throughput, keep your network connected and secure.

The FortiGate 3700D Series provides high-performance routing capabilities that seamlessly integrate with 7 advanced security layers and virtual domains (VDOMs) for flexible deployment and efficient resource utilization.

General All
Interfaces
1
FortiGate 3700D/-DC:
  • 20-Port 1/10GbE (SFP/SFP+);
  • 8-Port 10GbE (SFP+);
  • 4-Port 40GbE (QSFP);
  • 1-Port USB;
  • 2-Port management (RJ45);
  • 1-Port console (miniUSB/RJ45);
  • 960 GB SSD local storage
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
133 (3U) x 437 х 579 mm
(5.25 (3U) x 17.2 x 22.8 in)
4
Maximum Weight (kg)

17.0 kg (37.5 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

20 to 90

7
Operating Temperature (°C)

0 to 40 (32 to 104 °F)

8
Maximum Power Consumption (W)

870

9
Performance
10
Firewall throughput (Gbit/s): 110
Firewall throughput (Mp/s): 165
Maximum concurrent sessions: 50M
Connections per second: 400,000
Maximum security policies: 200,000
IPsec VPN throughput (Gbit/s): 100
IPsec VPN tunnels: 64,000
IPS throughput (Gbit/s): 57
Application Control throughput (Gbit/s): 40
11
Power Supply Unit (PSU)
12
AC PSU
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
13
DC PSU
Type: Removable
Quantity: 2
Rated voltage range: -48 to -72 VDC
14
Compatible Expansion Cards
15

Not supported
