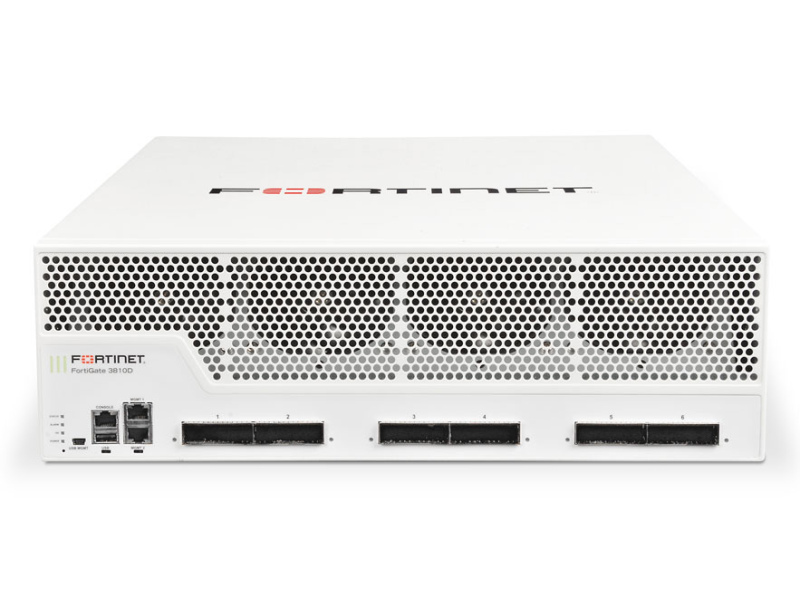

Fortinet FortiGate 3800D Series Available to Quote:

FortiGate 3800D; FortiGate 3800D-DC

FortiGate 3810D; FortiGate 3810D-DC

FortiGate 3815D; FortiGate 3815D-DC

Request a Quote
Description Specifications Additional materials

The FortiGate 3800D Series provides high-performance threat protection and SSL verification for large enterprises and service providers, as well as enterprise / cloud deployment flexibility in data centers or internal segments.

High-density FortiGate 3800D gateways with 10GbE, 40GbE, 100GbE port density provide superior security protection and high throughput of 150 Gbit / s, keep your network connected and secure.

The FortiGate 3800D Series provides high-performance routing capabilities that seamlessly integrate with 7 advanced security levels and virtual domains (VDOMs) for flexible deployment and efficient resource utilization.

General All
Interfaces
1
FortiGate 3800D/-DC:
  • 8-Port 1/10GbE (SFP/SFP+);
  • 4-Port 40GbE (QSFP+);
  • 4-Port 100GbE (CFP2);
  • 1-Port USB;
  • 2-Port management (RJ45);
  • 1-Port console (RJ45);
  • 960 GB SSD local storage
FortiGate 3810D/-DC:
  • 6-Port 100GbE (CFP2)
  • 1-Port USB;
  • 2-Port management (RJ45);
  • 1-Port console (RJ45);
  • 960 GB SSD local storage
FortiGate 3815D/-DC:
  • 10-Port 10GbE (SFP+);
  • 4-Port 100GbE (CFP2);
  • 1-Port USB;
  • 2-Port management (RJ45);
  • 1-Port console (RJ45);
  • 960 GB SSD local storage
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
133 (3U) x 442 х 673 mm
(5.25 (3U) x 17.4 x 26.5 in)
4
Maximum Weight (kg)
FortiGate 3800D/-DC: 23.0 kg (51.0 lbs)
FortiGate 3810D/-DC: 26.8 kg (59.0 lbs)
FortiGate 3815D/-DC: 26.8 kg (59.0 lbs)
5
Environmental Conditions
6
Relative Humidity (%)

20 to 90

7
Operating Temperature (°C)

0 to 40 (32 to 104 °F)

8
Maximum Power Consumption (W)
FortiGate 3800D/-DC: 768
FortiGate 3810D/-DC: 1100
FortiGate 3815D/-DC: 1100
9
Performance
10
Firewall throughput (Gbit/s): 150
Firewall throughput (Mp/s): 262.5
Maximum concurrent sessions 95M
Connections per second: 480,000
Maximum security policies: 200,000
IPsec VPN throughput (Gbit/s): 135
IPsec VPN tunnels 64,000
IPS throughput (Gbit/s): 75
Application Control throughput (Gbit/s): 44
11
Power Supply Unit (PSU)
12
AC PSU
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
13
DC PSU
Type: Removable
Quantity: 2
Rated voltage range: -48 to -72 VDC
14
Compatible Expansion Cards
15

Not supported
