Fortinet FortiGate 500E Series Available to Quote:

FortiGate 500E

FortiGate 501E

Request a Quote
Description Specifications Additional materials

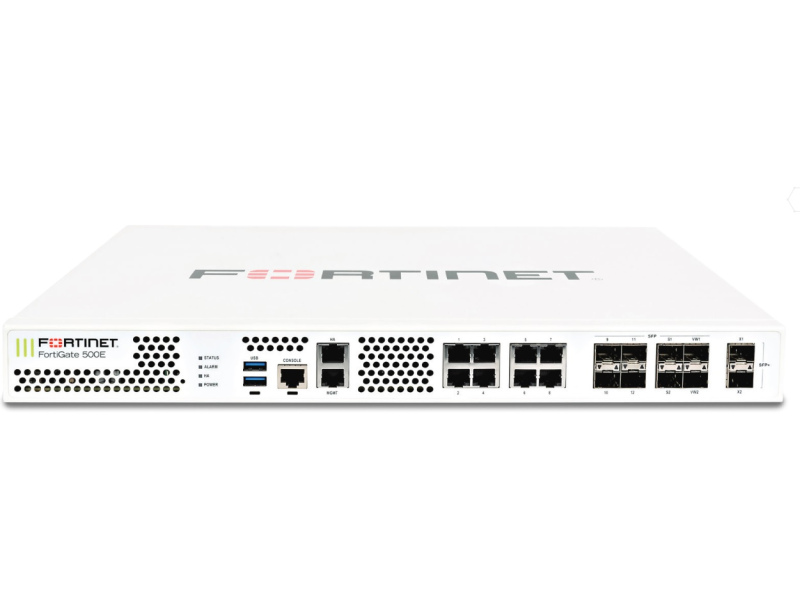

The FortiGate 500E Series delivers next-generation firewalls in a compact package for mid-sized and large enterprises, with deployment options on campus or branch office.

FortiGate 500E gateways support extensive routing, switching, wireless controller capabilities, and scalable IPsec VPN capabilities to combine network and security functions.

FortiGate 500E gateways provide flexible SD-WAN deployment, threat protection and low latency using a security processor (SPU). They protect against encrypted and unencrypted malware, vulnerabilities and malicious websites, and they detect attacks using continuous analysis.

General All
Interfaces
1
FortiGate 500E/501E:
  • 8-Port 1GbE (SFP);
  • 2-Port 10GbE (SFP+);
  • 8-Port 1GbE (RJ45);
  • 2-Port MGMT/HA 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 2-Port USB
FortiGate 501E:
  • 8-Port 1GbE (SFP);
  • 2-Port 10GbE (SFP+);
  • 8-Port 1GbE (RJ45);
  • 2-Port MGMT/HA 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 2-Port USB;
  • 2 x 240 GB SSD local storage
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
44.45 (1U) x 432 х 380 mm
(1.75 (1U) x 17.0 x 15.0 in)
4
Maximum Weight (kg)
FortiGate 500E: 7.3 kg (16.1 lbs)
FortiGate 501E: 7.5 kg (16.6 lbs)
5
Environmental Conditions
6
Relative Humidity (%)

10 to 90

7
Operating Temperature (°C)

0 to 40 (32 to 104°F)

8
Maximum Power Consumption (W)
FortiGate 500E: 193
FortiGate 501E: 200
9
Performance
10
Firewall throughput (64 Byte) (Gbit/s): 32
Firewall throughput (Mp/s): 33
Maximum concurrent sessions: 8M
Connections per second: 300,000
Maximum security policies: 10,000
IPsec VPN throughput (Gbit/s): 20
IPsec VPN tunnels: 2,000
IPS throughput (Gbit/s): 11
Application Control throughput (Gbit/s): 14
11
Power Supply Unit (PSU)
12
AC PSU
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
13
DC PSU

Not supported

14
Compatible Expansion Cards
15

Not supported
