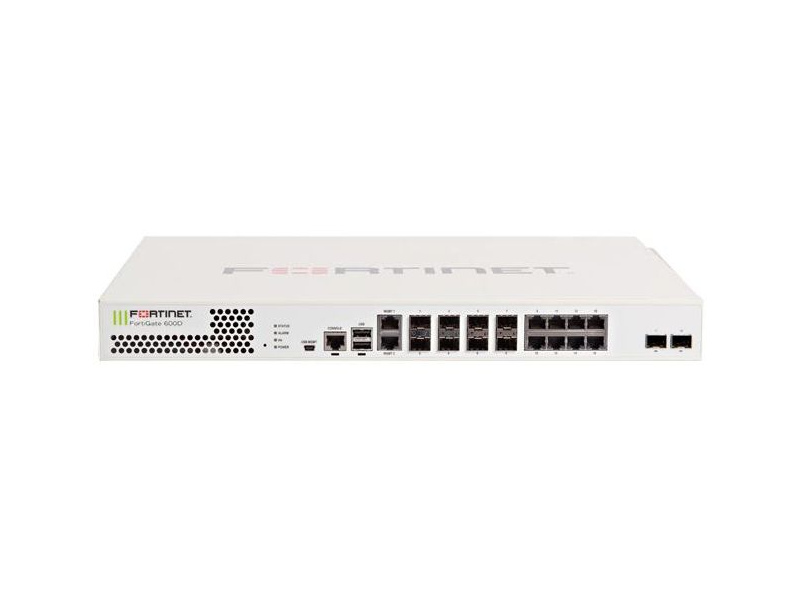

Fortinet FortiGate 600D Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

The FortiGate 600D is the next generation firewall in a compact package for medium and large enterprises with the ability to deploy in campus networks, data centers and in the internal segments.

The Security Gateway supports extensive routing, switching, and scalable IPsec VPN capabilities to integrate network and security.

FortiGate 600D provides flexible SD-WAN deployment, reliable protection against cyber threats using SPU security processor. The gateway also protects against malicious programs and websites in an encrypted and unencrypted form, and detects attacks through continuous analysis.

General All

Interfaces

FortiGate 600D:

8-Port 1GbE (RJ45);
8-Port 1GbE (SFP);
2-Port 10GbE (SFP+);
2-Port USB ports;
2-Port management (RJ45);
1-Port console (RJ45);
120 GB SSD local storage;
1-Port RPS

Physical Parameters

Dimensions (HxWxD) (mm)

44 (1U) x 432 х 322 mm

(1.75 (1U) x 17.01 x 12.68 in)

Maximum Weight (kg)

5.2 kg (11.46 lbs)

Environmental Conditions

Relative Humidity (%)

20 to 90

Operating Temperature (°C)

0 to 40 (32 to 104°F)

Maximum Power Consumption (W)

191

Performance

Firewall throughput (Gbit/s):	24
Firewall throughput (Mp/s):	36
Maximum concurrent sessions:	5.5M
Connections per second:	270,000
Maximum security policies:	10,000
IPsec VPN throughput (Gbit/s):	20
IPsec VPN tunnels:	10,000
IPS throughput (Gbit/s):	7
Application Control throughput (Gbit/s):	9
