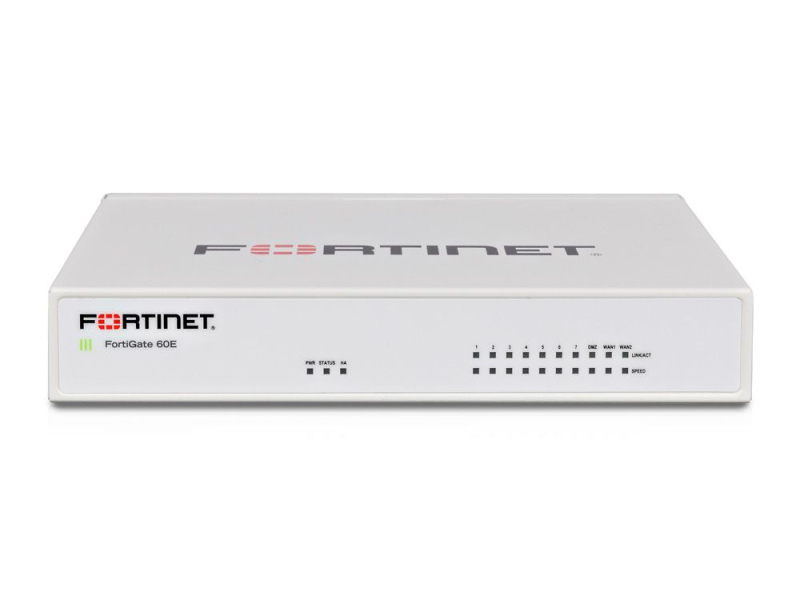

Fortinet FortiGate 60E Series

Fortinet FortiGate 60E Series Available to Quote:

FortiGate 60E; FortiWiFi 60E

FortiGate 61E; FortiWiFi 61E

Request a Quote

Description Specifications Additional materials

FortiGate 60E Series Security Gateways provide comprehensive network security in a compact size for branch and mid-sized businesses.

Security Gateways support basic routing, switching, and scalable IPsec VPN capabilities to protect data and applications.

The FortiGate 60E Series provides flexible SD-WAN deployment and robust cyber threat protection using the SPU security processor. The FortiGate 60E Series Gateways also provide anti malware protection, websites security, and application control.

General All

Interfaces

FortiGate 60E:	10-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 7-Port LAN, and 1-Port DMZ); 1-Port USB; 1-Port console (RJ45)
FortiWiFi 60E:	10-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 7-Port LAN, and 1-Port DMZ); 1-Port USB; 1-Port console (RJ45); WiFi. IEEE 802.11 a/b/g/n (2.4GHz)
FortiGate 61E:	10-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 7-Port LAN, and 1-Port DMZ); 1-Port USB; 1-Port console (RJ45); 128 GB local storage
FortiWiFi 61E:	10-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 7-Port LAN, and 1-Port DMZ); 1-Port USB; 1-Port console (RJ45); WiFi. IEEE 802.11 a/b/g/n (2.4GHz); 128 GB local storage

Physical Parameters

Dimensions (HxWxD) (mm)

38 x 216 х 160

(1.5 x 8.5 x 6.3 in)

Maximum Weight (kg)

0.9 (1.9 lbs)

Environmental Conditions

Relative Humidity (%)

20 to 90

Operating Temperature (°C)

0 to 40 (32 to 104 °F)

Maximum Power Consumption (W)

Fortigate 60E:	14.0
FortiWiFi 60E:	15.2
Fortigate 61E:	14.3
FortiWiFi 61E:	16.0

Performance

Firewall throughput (Gbit/s):	3
Firewall throughput (Mpps):	4.5
Maximum concurrent sessions:	1.3M
Connections per second:	30,000
Maximum security policies:	5000
IPsec VPN throughput (Gbit/s):	2
IPsec VPN tunnels:	500
IPS throughput (Mbit/s):	1400
Application Control throughput (Mbit/s):	550
