Fortinet FortiGate 900D Series Available to Quote:

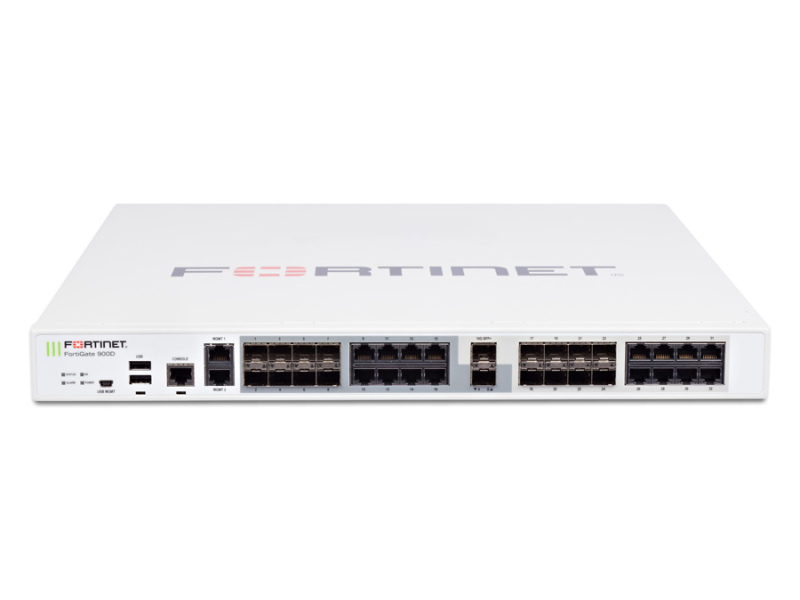

FortiGate 900D

Request a Quote
Description Specifications Additional materials

FortiGate 900D is the next generation firewall in a compact package for medium and large enterprises with the ability to deploy on campus or branch office.

The FortiGate 900D Security Gateway supports extensive routing, switching, wireless controller capabilities and scalable IPsec VPN capabilities to combine network and security functions.

The FortiGate 900D provides flexible SD-WAN deployment, threat protection, and low latency using a security processor (SPU). It protects against malicious programs, vulnerabilities and malicious websites in an encrypted and unencrypted form, and detects attacks through continuous analysis.

General All
Interfaces
1
FortiGate 900D:
  • 16-Port 1GbE (RJ45);
  • 16-Port 1GbE (SFP);
  • 2-Port 10GbE (SFP+);
  • 2-Port USB;
  • 2-Port management (RJ45);
  • 1-Port console (miniUSB/RJ45);
  • 256 GB SSD local storage
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
44.2 (1U) x 437.5 х 463.2 mm
(1.74 (1U) x 17.22 x 18.24 in)
4
Maximum Weight (kg)

9.18 kg (20.24 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

20 to 90

7
Operating Temperature (°C)

0 to 40 (32 to 104°F)

8
Maximum Power Consumption (W)

187.2

9
Performance
10
Firewall throughput (Gbit/s): 33
Firewall throughput (Mp/s): 49.5
Maximum concurrent sessions: 11M
Connections per second: 280,000
Maximum security policies: 10,000
IPsec VPN throughput (Gbit/s): 25
IPsec VPN tunnels: 10,000
IPS throughput (Gbit/s): 8
Application Control throughput (Gbit/s): 10
11
Power Supply Unit (PSU)
12
AC PSU
Type: Built-in
Quantity: 1
Rated voltage range: 100 to 240 VAC, 50-60 Hz
13
DC PSU

Not supported

14
Compatible Expansion Cards
15

Not supported
