Fortinet FortiGate 90D Series

Fortinet FortiGate 90D Series Available to Quote:

FortiGate 90D; FortiWiFi 90D

FortiGate 90D-POE

FortiWiFi 90D-POE

Request a Quote

Description Specifications Additional materials

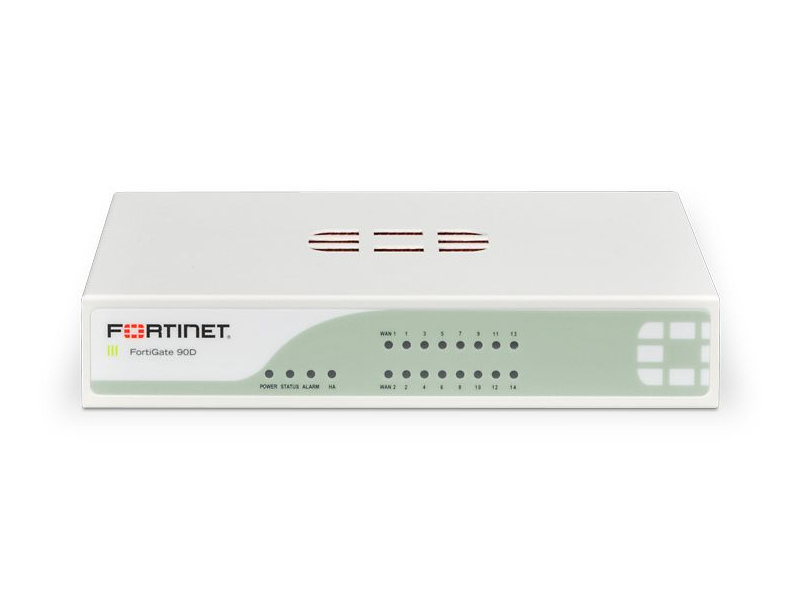

FortiGate 90D is the next generation of firewalls for network security in a compact package, perfect for corporate branches and medium-sized enterprises.

FortiGate 90D gateways support extensive routing, switching, and scalable IPsec VPN capabilities to integrate network and security.

The FortiGate 90D series provides flexible UTM deployment and Secure SD-WAN, reliable protection against cyber threats using the security processor SPU. Gateways also protect against malicious programs and websites in an encrypted and unencrypted form, and detect attacks using continuous analysis.

The FortiWiFi 90D-POE gateway is equipped with 1 USB port, which allows you to connect a compatible 3G / 4G USB modem for additional connection to a global network or a backup communication line.

General All

Interfaces

FortiGate 90D:	16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 14-Port LAN); 2-Port USB; 1-Port console (miniUSB); 32 GB local storage
FortiWiFi 90D:	16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 14-Port LAN); 2-Port USB; 1-Port console (miniUSB); WiFi. IEEE 802.11 a/b/g/n (2.4GHz); 32 GB local storage
FortiGate 90D-POE:	16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 10-Port LAN, and 4-Port PoE); 2-Port USB; 1-Port console (miniUSB); 32 GB SSD local storage
FortiWiFi 90D-POE:	16-Port 1GbE (RJ45) (Bundle includes: 2-Port WAN, 10-Port LAN, and 4-Port PoE); 2-Port USB; 1-Port console (miniUSB); WiFi. IEEE 802.11 a/b/g/n (2.4GHz); 32 GB SSD local storage

Physical Parameters

Dimensions (HxWxD) (mm)

FortiGate 90D: FortiGate 90D-POE:	44 x 216 х 223 (1.72 x 8.5 x 8.78 in)
FortiWiFi 90D: FortiWiFi 90D-POE:	44 x 234 х 223 (1.72 x 9.2 x 8.78 in)

Maximum Weight (kg)

1.6 (3.5 lbs)

Environmental Conditions

Relative Humidity (%)

20 to 90

Operating Temperature (°C)

0 to 40 (32 to 104 °F)

Maximum Power Consumption (W)

FortiGate 90D:	22
FortiWiFi 90D:	25
FortiGate 90D-POE:	89
FortiWiFi 90D-POE:	90

Performance

Firewall throughput (Gbit/s):	3.5
Firewall throughput (Mp/s):	5.3
Maximum concurrent sessions:	2M
Connections per second:	4000
Maximum security policies:	5000
IPsec VPN throughput (Gbit/s):	1
IPsec VPN tunnels:	1000
IPS throughput (Mbit/s):	275
Application Control throughput (Mbit/s):	60

Power Supply Unit (PSU)

AC PSU

Type:	External
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Not supported

Compatible Expansion Cards

Not supported
