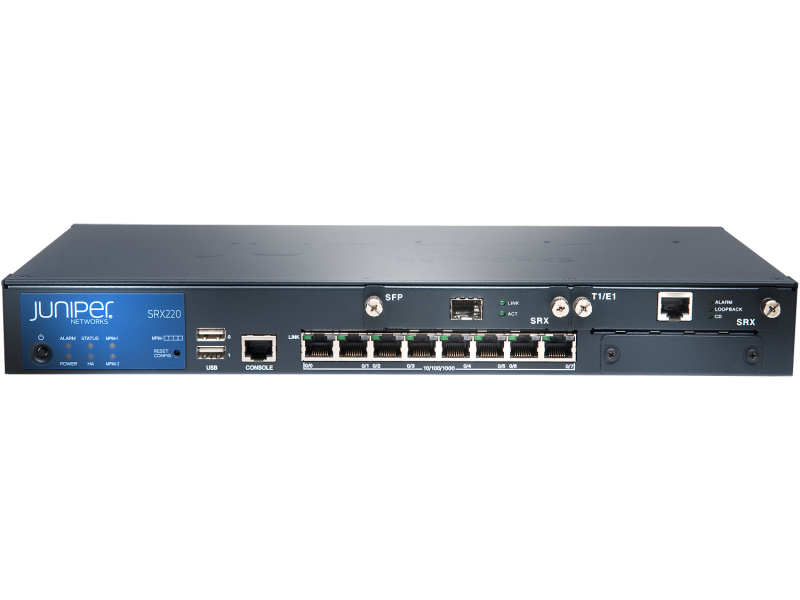

Juniper SRX220 Series

Juniper SRX220 Series Available to Quote:

SRX220H2

SRX220H2-POE

Request a Quote

Description Specifications Additional materials

The high-performance Juniper Networks SRX220 Series service gateways provide unified threat management (UTM), security, routing, and switching for medium and large enterprises.

The SRX220 series supports a wide range of functions, the serial port T1 / E1, DS3 / E3, xDSL, Wi-Fi and 3G / 4G LTE (wireless) for secure connection to WAN or Internet.

The SRX220 gateways provide content protection, application visibility, policy tracking and enforcement, role and user-based control, and threat visibility and control throughout the network.

General All

Interfaces

SRX220H2:	8-Port 1GbE (RJ45); 2 Mini PIM card expansion slots; 2-Port USB; 1-Port console (RJ45)
SRX220H2-POE:	8-Port 1GbE (RJ45) PoE; 2 Mini PIM card expansion slots; 2-Port USB; 1-Port console (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)

44 (1U) x 363 х 181

(1.73 (1U) x 14.29 x 7.13 in)

Maximum Weight (kg)

SRX220H2:	1.5 (3.3 lbs)
SRX220HE2-POE:	2.0 (4.4 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 90

Operating Temperature (°C)

0 to 40 (32 to 104°F)

Maximum Power Consumption (W)

SRX220H2:	28
SRX220H2-POE:	86

Performance

Firewall throughput IMIX (Mbit/s):	950
Firewall throughput (64 Byte) (Kp/s):	125
Maximum concurrent sessions:	96,000
Connections per second:	2800
Maximum security policies:	2048
IPsec VPN throughput (Mbit/s):	100
IPsec VPN tunnels:	512
IPS throughput (Mbit/s):	80
Application Control throughput (Mbit/s):	35

Power Supply Unit (PSU)

AC PSU

Type:	External
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Not supported

Compatible Expansion Cards

Compatible Mini-PIM Cards

Model Number	Description
SRX-MP-1SERIAL:	1-Port serial (DCE/DTE)
SRX-MP-1ADSL2-A:	1-Port ADSL2+ (Annex A)
SRX-MP-1ADSL2-B:	1-Port ADSL2+ (Annex B)
SRX-MP-1VDSL2-A:	1-Port VDSL2 port
SRX-MP-8GSHDSL:	1-Port G.SHDSL (4 pairs)
SRX-MP-1SFP-GE:	1-Port SFP
SRX-MP-1T1E1:	1-Port E1
