Juniper SRX4600 Available to Quote:

SRX4600

Request a Quote
Description Specifications Additional materials

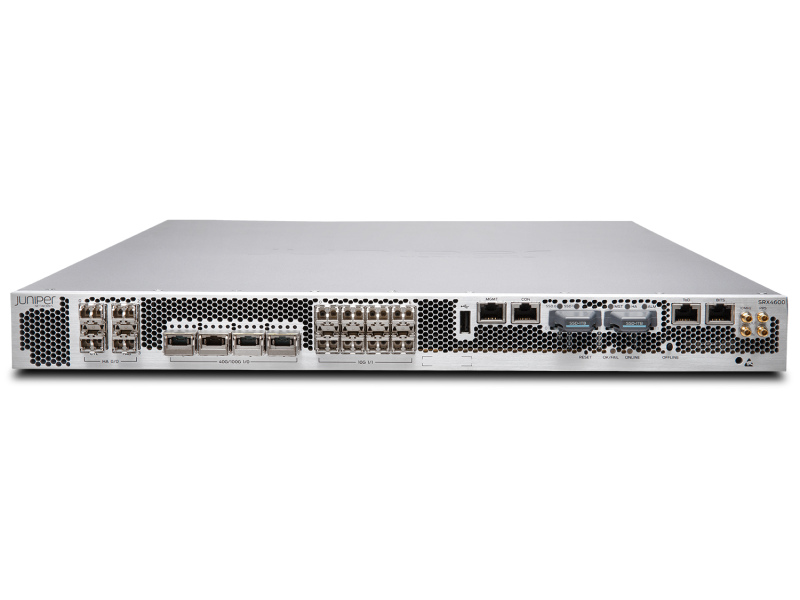

Juniper SRX4600 - The Next Generation High-Performance Firewall Provides Fast, Scalable Security for Data Centers, Campus Networks, Mobile and Cloud Providers

SRX4600 in a compact 1U form factor with fixed 10GbE, 40GbE, 100GbE ports. Firewall performance can reach 75 Gbit / s, and intrusion prevention system (IPS) 20 Gbit / s and VPN IPsec up to 16 Gbit / s.

With built-in malware protection and a full suite of next-generation services, the SRX4600 provides robust protection against threats and attacks.

General All
Interfaces
1
SRX4600:
  • 8-Port 1/10GbE (SFP/SFP+);
  • 4-Port 40/100GbE (QSFP28);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 2-Port HA 10GbE (SFP+);
  • 1-Port console (RJ45);
  • 1-Port TOD (RJ45);
  • 1-Port BITS (RJ45);
  • 1-Port Clock OUT 10 MHz (SMB);
  • 1-Port Sync OUT 1 PPS (SMB);
  • 1-Port USB;
  • 2 x 1TB SSD local storage
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
43.2 (1U) x 441.9 x 673.1 mm
(1.7 (1U) x 17.4 x 26.5 in)
4
Maximum Weight (kg)

17.24 kg (38 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 85

7
Operating Temperature (°C)

0 to 40 (32 to 104 °F)

8
Maximum Power Consumption (W)

650

9
Performance
10
Firewall throughput IMIX (Gbit/s): 75
Firewall throughput (64 Byte) (Gbit/s): 17
Maximum concurrent sessions: 60M
Connections per second: 500,000
Maximum security policies: 80.000
IPsec VPN throughput IMIX (Gbit/s): 16
IPS throughput (Gbit/s): 20
Application Control throughput (Gbit/s): 80
11
Power Supply Unit (PSU)
12
AC PSU
Type: Removable
Quantity: 2
Rated voltage range: 110 to 220 VAC, 50-60 Hz
13
DC PSU
ype: Removable
Quantity: 2
Rated voltage range: -48 to -60 VDC
14
Compatible Expansion Cards
15

Not supported
