GPON MDU Huawei SmartAX MA5620
GPON MDU Huawei SmartAX MA5620

End-of-Sale

Please see "Similar Products" below.


Description Specifications Additional materials

GPON MDU Huawei SmartAX MA5620

General All
Interfaces
1

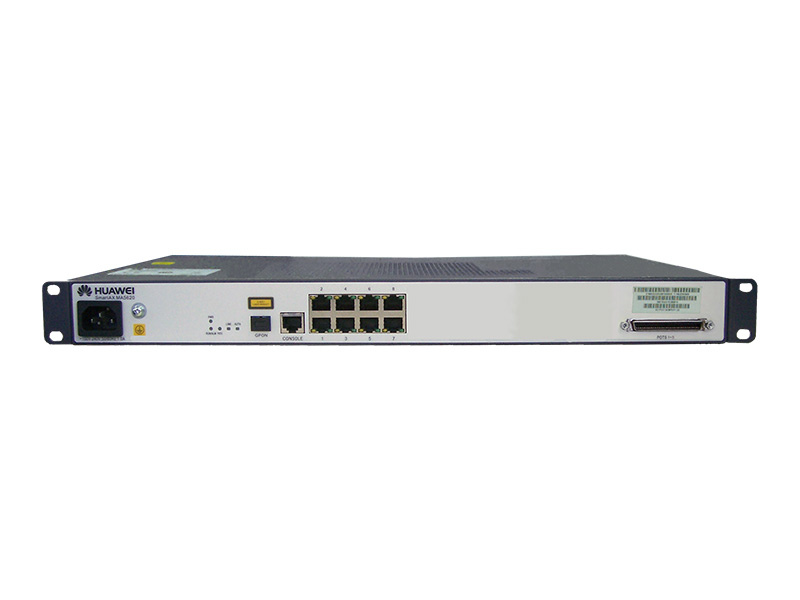

MA5620-8
  • 1-Port GPON (SC/UPC);
  • 8-Port 10/100MbE (RJ45);
  • 8-Port POTS (DB68)
  • 1-Port console (RJ45)
MA5620-16
  • 1-Port GPON (SC/UPC);
  • 16-Port 10/100MbE (RJ45);
  • 16-Port POTS (DB68)
  • 1-Port console (RJ45)
MA5620-24
  • 1-Port GPON (SC/UPC);
  • 24-Port 10/100MbE (RJ45);
  • 24-Port POTS (DB68)
  • 1-Port console (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
43.6 (1U) x 442 х 220
(1.72 (1U) x 17.4 x 8.66 in)
4
Maximum Weight (kg)
MA5620-8: 2.12 (4.67 lbs)
MA5620-16: 2.35 (5.18 lbs)
MA5620-24: 2.43 (5.36 lbs)
5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

-40 to +55 (-40 to +131 °F)

8
Maximum Power Consumption (W)
MA5620-8: 18.94
MA5620-16: 29.6
MA5620-24: 39.9
9
Parameters of the interfaces
10
VoIP
Supported protocols: SIP / H.248
Voice codecs: G.711A/µ; G.729; G.723.1High; G.723Low
Fax: T.30/T.38
11
Performance
12
Switching Bandwidth (Gbit/s)
MA5620-8: 5.6
MA5620-16: 7.2
MA5620-24: 8.8
13
Forwarding Rate (Mp/s)
MA5620-8: 8.4
MA5620-16: 10.8
MA5620-24: 13.2
14
Layer 2 Features
15
VLAN

IEEE 802.1Q: 4094.  GVRP; QinQ; VLAN Translation

16
Multicast
17

IGMP snooping:  v2/v3, IGMP Proxy

18
Security
19
Local AAA: Supported
RADIUS, TACACS+: Only RADIUS
DHCP Server: Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
20
Management
21

Telnet; SSH; SNMP; OMCI

22
Power Supply Unit (PSU)
23
AC PSU
Type: Built-in
Rated voltage range: 90 to 300 VAC, 50-60 Hz
24
DC PSU

Not supported

25

MA5620 Datasheet (en)
