GPON MDU Huawei SmartAX MA5622A
GPON MDU Huawei SmartAX MA5622A

End-of-Sale

Please see "Similar Products" below.
Description Specifications Additional materials

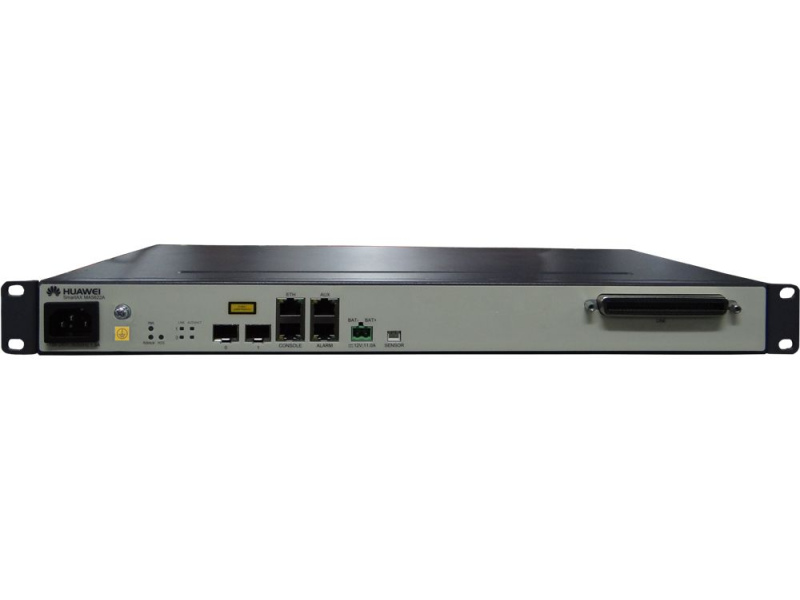

GPON MDU Huawei SmartAX MA5622A

General All
Interfaces
1
MA5622A (8 VDSL2 + 8 POTS):
  • 2-Port SFP (GPON / GE);
  • 8-Port VDSL2;
  • 8-Port POTS;
  • 1-Port Battery backup;
  • 1-Port Environment monitoring;
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port console (RJ45)
MA5622A (16 VDSL2 + 16 POTS):
  • 2-Port SFP (GPON / GE);
  • 16-Port VDSL2;
  • 16-Port POTS;
  • 1-Port Battery backup;
  • 1-Port Environment monitoring;
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port console (RJ45)
MA5622A (24 VDSL2 + 24 POTS):
  • 2-Port SFP (GPON / GE);
  • 24-Port VDSL2;
  • 24-Port POTS;
  • 1-Port Battery backup;
  • 1-Port Environment monitoring;
  • 1-Port out-of-band management 10/100MbE (RJ45);
  • 1-Port console (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
43.6 (1U) x 482.6 x 220
(1.71 (1U) x 19 x 8.66 in)
4
Maximum Weight (kg)

3.3 (7.27 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

-40 to +65 (-40 to +149 °F)

8
Maximum Power Consumption (W)

73

9
Performance
10
Switching Bandwidth (Gbit/s)

12.4

11
Forwarding Rate (Mp/s)

18.6

12
Layer 2 Features
13
VLAN

IEEE 802.1Q: 4000.  QinQ; VLAN Translation

14
Security
15
Local AAA: Supported
RADIUS, TACACS+: Only RADIUS
DHCP Server: Not Supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Not Supported
Broadcast, multicast, unknown unicast suppression: Not Supported
16
Management
17

Telnet; SSH; SNMP; OMCI

18
Power Supply Unit (PSU)
19
AC PSU with battery backup
Type:
Built-in
Quantity:
1
Rated voltage range:
AC PSU: 90 to 300 VAC, 50-60 Hz
Battery backup: 12V DC
20
DC PSU

Not supported

21

MA5622A Datasheet (en)

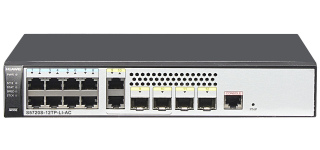

Similar Products
