GPON MDU Huawei SmartAX MA5694 / MA5698
GPON MDU Huawei SmartAX MA5694 / MA5698

End-of-Sale

Please see "Similar Products" below.


Description Specifications Additional materials

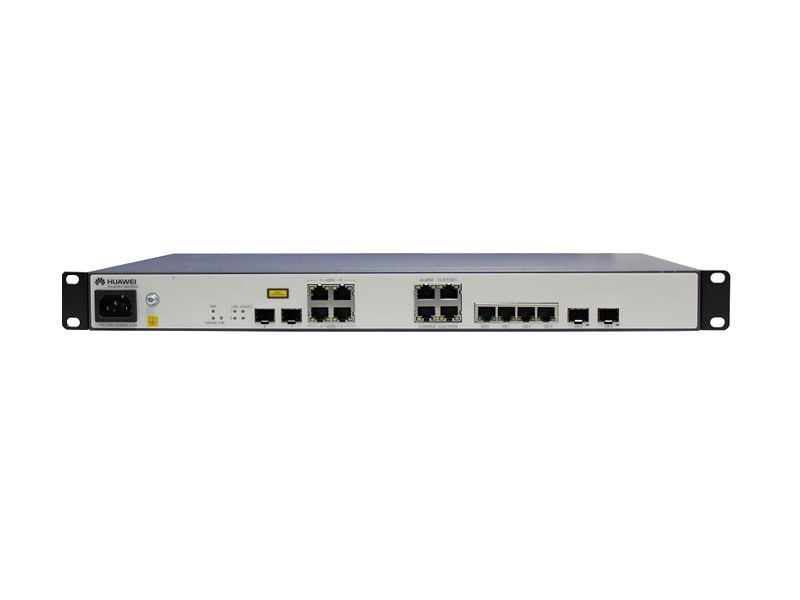

GPON MDU Huawei SmartAX MA5694 / MA5698

General All
Interfaces
1
MA5694 (4 порта):
  • 2-Port SFP (GPON / GE);
  • 4-Port VDSL2 (RJ11);
  • 1-Port environment monitoring (RJ45);
  • 1-Port console (RJ45);
  • 2-Port clock / TOD (RJ45);
  • 2-Port 1GbE (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP)
MA5694 (8 портов):
  • 2-Port SFP (GPON / GE);
  • 4-Port VDSL2 (RJ11);
  • 1-Port environment monitoring (RJ45);
  • 1-Port console (RJ45);
  • 2-Port clock / TOD (RJ45);
  • 2-Port 1GbE (RJ45);
  • 2-Port combo 1GbE (RJ45/SFP)
МА5698:
  • 2-Port SFP (GPON / GE);
  • 1-Port environment monitoring (RJ45);
  • 1-Port console (RJ45);
  • 2-Port clock / TOD (RJ45);
  • 1-Port battery backup;
  • 4-Port 1GbE (RJ45);
  • 2-Port 1GbE (SFP);
  • 2 expansion slots
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
43.6 (1U) х 482.6 x 245
(1.71 (1U) x 19 x 9.65 in)
4
Maximum Weight (kg)
MA5694: 2.5 (5.5 lbs)
MA5698: 4.22 (9.3 lbs)
5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

-40 to +55 (-40 to +131°F)

8
Maximum Power Consumption (W)
MA5694: 20
MA5698: 40
9
Performance
10
Switching Bandwidth (Gbit/s)

6

11
Forwarding Rate (Mp/s)
MA5694: 10
MA5698: 8.688
12
MAC Address Table (entries)

16,000

13
Layer 2 Features
14
VLAN

IEEE 802.1Q: 4094.  GVRP; QinQ; VLAN Translation

15
Security
16
Local AAA: Supported
RADIUS, TACACS+: Not supported
DHCP Server: Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
17
Management
18

Telnet; SSH; SNMP; OMCI

19
Power Supply Unit (PSU)
20
AC PSU
Type:
Built-in
Quantity:
1
Rated voltage range:
AC PSU: 110 to 220 VAC 50-60 Hz;
Battery backup:  12 VDC
21
DC PSU
Type: Built-in
Quantity: 1
Rated voltage range: -38.4 to -72 VDC
22
Compatible Service Cards
23
Model Number Description
Supported by: MA5698
H831EIUC: 8-Port 10/100MbE (RJ45)
H831E81A: 8-Port E1 (RJ45)
24

MA5694 / MA5698 Datasheet (en)
