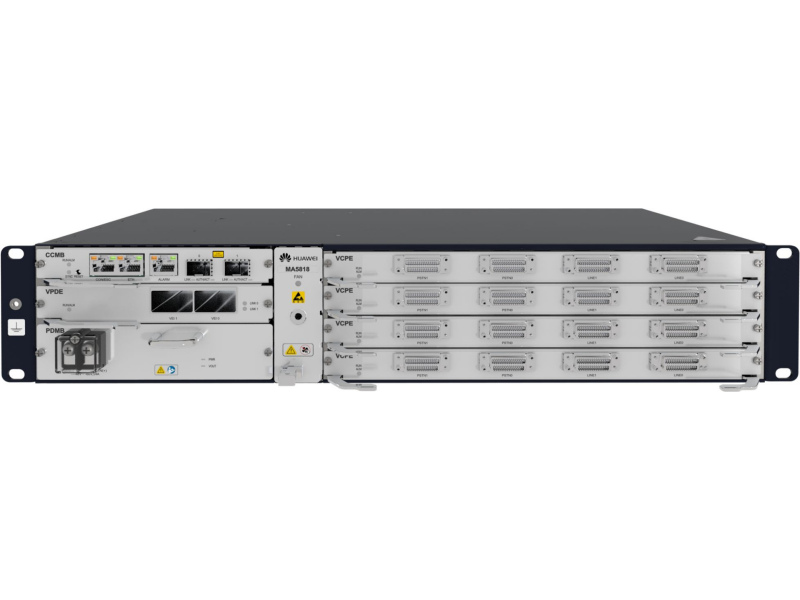

GPON MDU Huawei SmartAX MA5818
GPON MDU Huawei SmartAX MA5818 Available to Quote:

MA5818

 Request a Quote
Description Specifications Additional materials

GPON MDU Huawei SmartAX MA5818

General All
Interfaces
1
MA5818:
  • 4 Service Cards slots;
  • 1 Control Card slot;
  • 1 Vectoring Card slot;
  • 1 Power Card slot



2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
88.1 (2U) x 482.6 х 245
(3.47 (2U) x 19 x 9.65)
4
Maximum Weight (kg)/(lbs)

12.2 (26.89)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)/(°F)

-40 to +65 (-40 to +149)

8
Maximum Power Consumption (W)

550

9
Performance
10
Switching Bandwidth (Gbit/s)

20

11
Layer 2 Features
12
VLAN

IEEE 802.1Q: 4096.  QinQ; VLAN Translation

13
Multicast
14
IGMP snooping: v2/v3
IGMP groups: 1024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
15
Layer 3 features
16
IP Routing

Static Routing

17
Security
18
Local AAA: Supported
RADIUS, TACACS+: Only RADIUS
DHCP Server: Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
19
Management
20

Telnet; SSH; SNMP

21
Power Supply Unit (PSU)
22
AC PSU
Type: Removable
Quantity: 1
Rated voltage range: 90 to 264 VAC, 50-60 Hz
23
AC PSU with power backup
Type:
Removable
Quantity:
1
Rated voltage range:
  • AC power supply: 90 to 264 VAC
  • Power backup: -43.2 to -52 V DC
24
DC PSU
Type: Removable
Quantity: 1
Rated voltage range: -38.4 to -72 VDC
25
Compatible Control Cards
26
Model Number
Description
H831CCMA:
Control Card for MA5818
  • 2 SFP upstream ports
H831CCMB:
Control Card for MA5818
  • 2 SFP upstream ports
27
Compatible Power Supply Cards
28
Model Number Description
H831PDMA: One -48 VDC input
H831PDMB: One -48 VDC inputs
H831PAMA: One 220 VAC input
H831PAMB: One 220 VAC input. One battery input for power backup
29
Compatible Service Cards
30
VDSL2 Service Cards
Model Number
Description
H836VDLE:
  • 32-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83DVCMM:
  • 48-channel VDSL2 over POTS
H83DSDMM:
  • 48-channel VDSL2 SuperVector
H836VCPE:
  • 64-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83DVCPE:
  • 64-channel VDSL2 over POTS. With embedded splitter (600-ohm impedance)
H83DVCPD:
  • 64-channel VDSL2
31
Centralized Vectoring Processing Cards
Model Number Description
H836VPJA:
  • works with H83DFDSH, H82DFDSD, H83FFDSH cards
H836VPJB:
  • works with H83DCSME, H83DVCMM, H83DCCME, H83DSDMM cards;
  • works with H83DVCPD, H83DVCPE cards;
  • works with H83DFDSH, H82DFDSD, H83FFDSH cards
H836VPQA:
  • works with H83DVCMM, H83DCCME cards;
  • works with H83DVCPD, H83DVCPE cards
H838VPDE:
  • works with H83DCSME, H83DVCMM, H83DCCME, H83DSDMM cards;
  • works with H83DVCPD, H83DVCPE cards



32
Voice Service Cards
Model Number
Description
H838ASPB:
  • 64-channel POTS
H839ASPB:
  • 64-channel POTS. Supports direct current-isolated (DC-I) grounding
33
Combo Service Cards
Model Number
Description
H83DCCME:
  • 48-channel VDSL2 and POTS
H83DCSME:
  • 48-channel VDSL2 SuperVector and POTS
34
G.fast Service Cards
Model Number
Description
H83DFDSH:
  • 24-channel G.fast lines
H82DFDSD:
  • 24-channel G.fast lines
H83FFDSH:
  • 24-channel G.fast lines
35

МА5818 Datasheet (en)
