GPON ONT Huawei Echolife EG8040H
GPON ONT Huawei Echolife EG8040H

End-of-Sale

Please see "Similar Products" below.


Description Specifications Additional materials

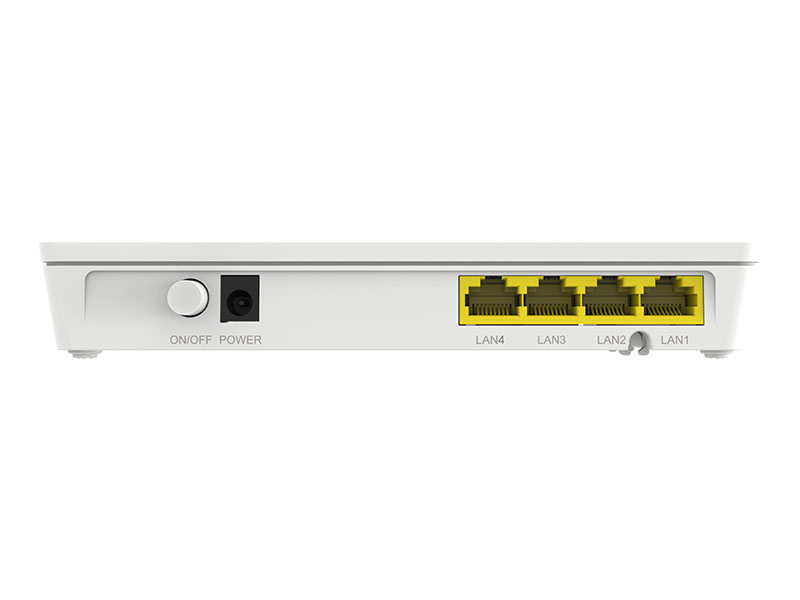

GPON ONT Huawei Echolife EG8040H

General All
Interfaces
1
EG8040H
  • 1-Port GPON (SC/UPC);
  • 4-Port 1GbE (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
28 x 138.5 х 176
(1.1 x 5.4 x 6.9 in)
4
Maximum Weight (kg)

0.5 (1.1 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

0 to 40 (32 to 104 °F)

8
Maximum Power Consumption (W)

7

9
Interfaces Parameters
10
GPON
Class: B+
Operating wavelengths: DS 1490 nm, US 1310 nm
Receiver sensitivity (dBm): -27
11
Layer 2 Features
12
VLAN

VLAN filtering. VLAN transparent transmission

13
Multicast
14
IGMP snooping:  v1/v2/v3.
Dynamically controllable multicast
15
Security
16

MAC address filtering

17
Power Supply Unit (PSU)
18
AC PSU
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 11 to 14 VDC. 1А
19
DC PSU

Not supported



20

EG8040H Datasheet (en)
