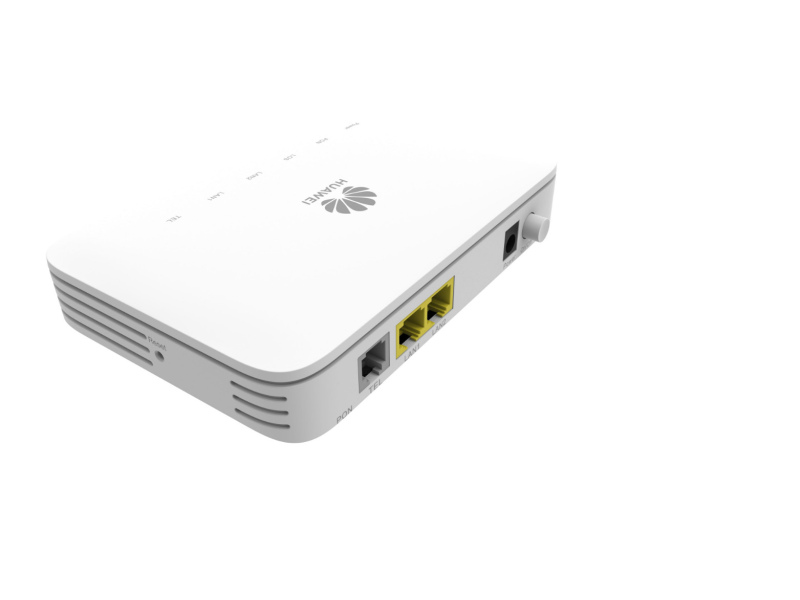

GPON ONT Huawei EchoLife EG8120L5
GPON ONT Huawei EchoLife EG8120L5 Available to Quote:

EG8120L5

 Request a Quote
Description Specifications Additional materials

GPON ONT Huawei Echolife EG8120L5

General All
Interfaces
1
EG8120L5:
  • 1-Port GPON (SC/APC);
  • 1-Port 1GbE (RJ45);
  • 1-Port 100MbE (RJ45);
  • 1-Port POTS (RJ11)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
32 x 145 х 97
(1.2 x 5.7 x 3.8)
4
Maximum Weight (kg)

0.145 (0.31)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

8
Maximum Power Consumption (W)

5

9
Interfaces Parameters
10
GPON
Class: B+
Operating wavelengths: DS 1490 nm, US 1310 nm
Receiver sensitivity (dBm): -27
11
VoIP
Supported protocols: SIP
Voice codecs: G.711A/µ, G.729a/b, G.722
Fax: T.30/T.38/G.711
12
Layer 2 Features
13
VLAN

VLAN filtering. VLAN transparent transmission

14
Multicast
15
IGMP snooping:  v1/v2/v3. IGMP Proxy; MLD v1/v2 snooping
Dynamically controllable multicast
16
Security
17
MAC addresses filtering, IP addresses filtering, URL filtering;
SPI firewall; Anti-DoS attack
18
Power Supply Unit (PSU)
19
AC PSU
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 11 to 14 VDC. 1А
20
DC PSU

Not supported

21

EG8120L5 Datasheet (en)

Similar Products
Recently viewed

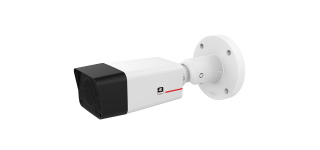

IP Camera Huawei IPC6284-VRZ IP Camera Huawei IPC6284-VRZ OLT Huawei MA5800 Series OLT Huawei MA5800 Series GPON ONT Huawei Echolife EG8080P GPON ONT Huawei Echolife EG8080P IP Camera Huawei IPC6324-MIR IP Camera Huawei IPC6324-MIR IP Camera Huawei IPC6225-VRZ IP Camera Huawei IPC6225-VRZ
