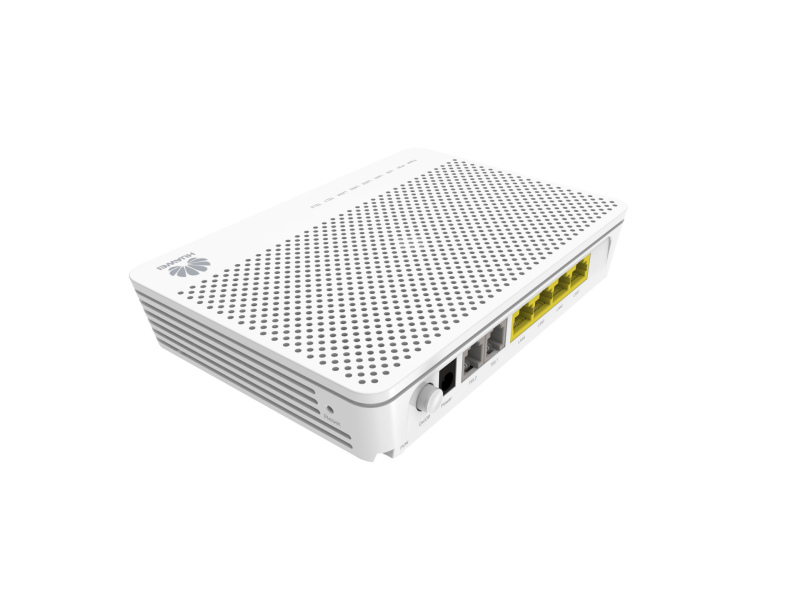

GPON ONT Huawei Echolife EG8240H5
GPON ONT Huawei Echolife EG8240H5 Available to Quote:

EG8240H5

 Request a Quote
Description Specifications Additional materials

GPON ONT Huawei Echolife EG8240H5

General All
Interfaces
1
EG8240H5:
  • 1-Port GPON (SC/APC);
  • 4-Port 1GbE (RJ45);
  • 2-Port POTS (RJ11)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
30 x 168 х 115
(1.1 x 6.6 x 4.5)
4
Maximum Weight (kg)

0.220 (0.48)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

8
Maximum Power Consumption (W)

6.6

9
Interfaces Parameters
10
GPON
Class: B+
Operating wavelengths: DS 1490 nm, US 1310 nm
Receiver sensitivity (dBm): -27
11
VoIP
Supported protocols: SIP / H.248
Voice codecs: G.711A/µ, G.729a/b, G.722
Fax: T.30 / T.38, G.711
12
Layer 2 Features
13
VLAN

VLAN filtering. VLAN transparent transmission

14
Multicast
15
IGMP snooping:  v1/v2/v3. IGMP Proxy;
Dynamically controllable multicast
16
Security
17
MAC address filtering
18
Power Supply Unit (PSU)
19
AC PSU
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 11-14 VDC. 2А
20
DC PSU

Not supported



21

EG8240H5 Datasheet (en)
