GPON ONT Huawei Echolife EG8280P
GPON ONT Huawei Echolife EG8280P Available to Quote:

EG8280P

 Request a Quote
Description Specifications Additional materials

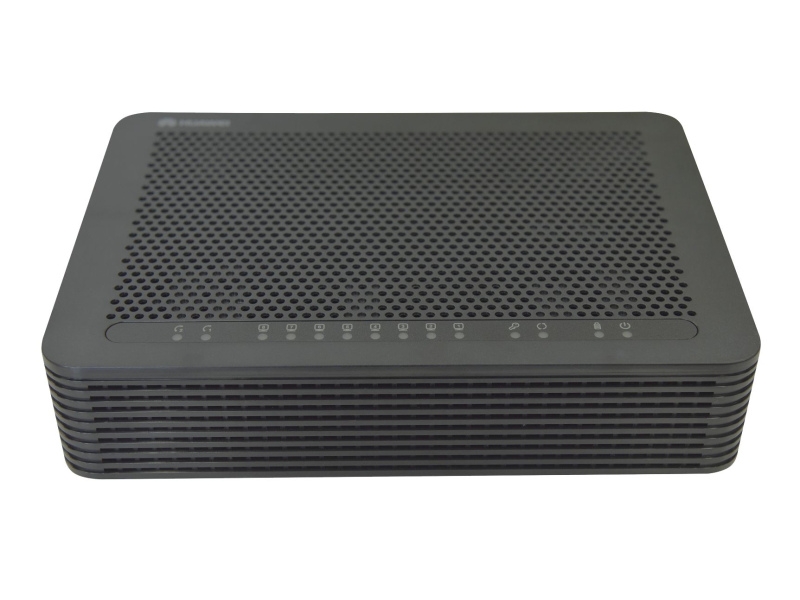

GPON ONT Huawei Echolife EG8280P

General All
Interfaces
1
EG8240P:
  • 1-Port GPON (SC/APC);
  • 8-Port 1GbE (RJ45) PoE;
  • 2-Port POTS (RJ11)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
56 x 254 х 180
(2.2 x 10 x 7.08)
4
Maximum Weight (kg)/(lbs)

1.1 (2.42)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

8
Maximum Power Consumption (W)

140

9
Interfaces Parameters
10
GPON
Class: B+
Operating wavelengths: DS 1490 nm, US 1310 nm
Receiver sensitivity (dBm): -27
11
VoIP
Supported protocols: SIP / H.248
Voice codecs: G.711A/µ, G.729a/b, G.722
Fax: T.30 / T.38
12
Layer 2 Features
13
VLAN

VLAN filtering. VLAN transparent transmission

14
Multicast
15
IGMP snooping:  v1/v2/v3.
Dynamically controllable multicast
16
Security
17
MAC address filtering
18
Power Supply Unit (PSU)
19
AC PSU
Type: External
Rated voltage range: 100 to 240 VAC, 50-60 Hz
Output: 56 VDC. 2.5А
20
PoE (Power over Ethernet)
21
PoE (802.3af) (15W per port) 8 ports
PoE+ (802.3аt) (30W per port): 4 ports
22

EG8280P Datasheet (en)
