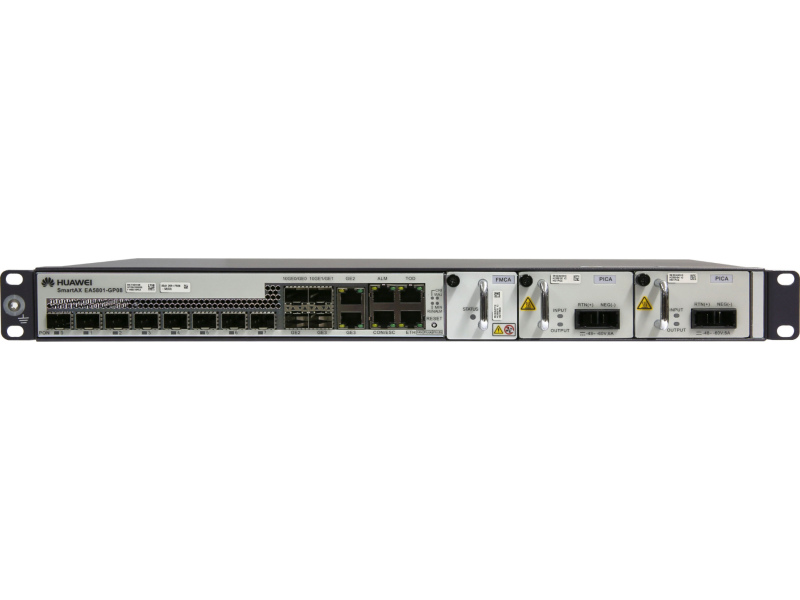

OLT Huawei EA5801-GP08
OLT Huawei EA5801-GP08 Available to Quote:

EA5801-GP08

 Request a Quote
Description Specifications Additional materials

OLT Huawei EA5801-GP08

General All
Interfaces
1
EA5801-GP08:
  • 8-Port GPON (SFP);
  • 2-Port 1/10GbE (SFP/SFP+)
  • 2-Port combo 1GbE (RJ45/SFP);
  • 1-Port environment monitoring (RJ45);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 1-Port console (RJ45);
  • 2 AC/DC Power Supply Card slots
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
43.6 (1U) x 482.6 x 222.3
(1.71 (1U) x 19.00 x 8.75 in)
4
Maximum Weight (kg)

4.6 (10.14 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

-40 to +65 (-40 to 149 °F)

8
Maximum Power Consumption (W)

79

9
Performance
10
Switching Bandwidth (Gbit/s)

20

11
MAC Address Table (entries)

32,768

12
ARP Table (entries)

16,384

13
Maximum PON ports
GPON: 8
XG-PON: Not supported
14
Layer 2 Features
15
VLAN

IEEE 802.1Q: 4094.  GVRP; QinQ; VLAN Translation

16
Layer 2 Reliability

STP/RSTP/MSTP;  ERPS (G.8032)

17
Multicast
18
IGMP snooping: v2/v3
IGMP groups: 4096
Multicast VLAN (MVR): Supported
Multicast Routing: PIM-SSM
19
Security
20
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Bandwidth Limit: Supported
Broadcast, multicast, unknown unicast suppression: Supported
21
Management
22

Telnet; SSH; LLDP; SNMP v1/v2/v3; Syslog; NTP

23
Compatible Control Boards
24

Not supported

25
Compatible Power Supply Boards
26
Model Number
Description
H921PICA:
Power supply card for EA5801-GP08
  • 1 x -48 VDC input
ME170-12A:
Power supply card for EA5801-GP08
  • 1 x 220 VAC input
27
Compatible Service Boards
28

Not supported

29

EA5801-GP08 Datasheet (en)
