XG-PON MDU Huawei SmartAX MA5878
XG-PON MDU Huawei SmartAX MA5878

End-of-Sale

Please see "Similar Products" below.
Description Specifications Additional materials

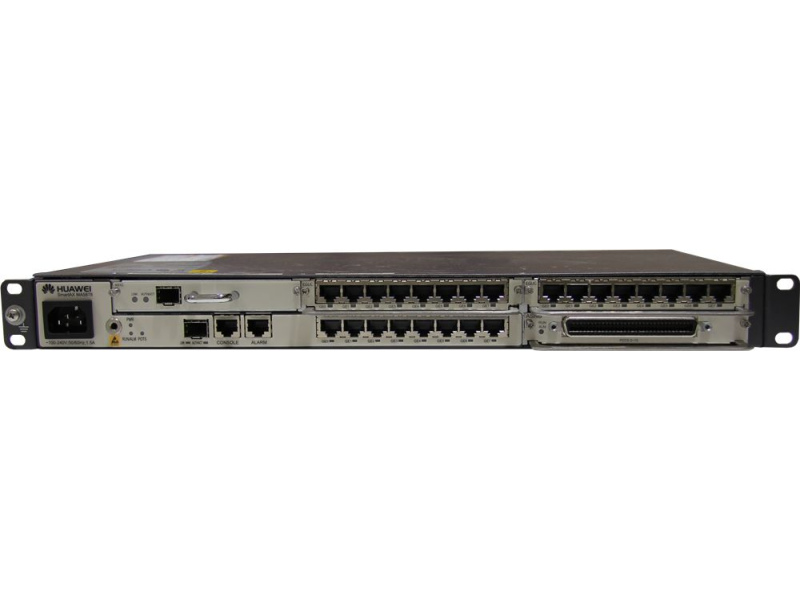

XG-PON MDU Huawei SmartAX MA5878

General All
Interfaces
1
MA5878:
  • 1 Uplink Card slot;
  • 3 Service Card slots;
  • 1-Port SFP (XG-PON (asymmetric) / GPON);
  • 1-Port environment monitoring (RJ45);
  • 1-Port console (RJ45);
  • 8-Port 1GbE (RJ45)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)
43.6 (1U) x 442 x 245
(1.71 (1U) x 17.40 x 9.64 in)
4
Maximum Weight (kg)

4.3 (9.4 lbs)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 95

7
Operating Temperature (°C)

-40 to +65 (-40 to +149°F)

8
Maximum Power Consumption (W)

61,1

9
Performance
10
MAC Address Table (entries)

4000

11
ARP Table (entries)

1024

12
Layer 2 Features
13
VLAN

IEEE 802.1Q: 4000.  GVRP; QinQ; VLAN Translation

14
Multicast
15
IGMP snooping: v2/v3
IGMP groups: 1024
Multicast VLAN (MVR): Supported
Multicast Routing: Not supported
16
Layer 3 features
17
Routing Table (routes)

256

18
IP Routing

Static Routing

19
Security
20
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Not supported
DHCP Relay option82: Supported
DHCP Snooping: Supported
Loop detection: Supported
IP Source Guard: Supported
Broadcast, multicast, unknown unicast suppression: Supported
21
Management
22

Telnet; SSH; SNMP; OMCI

23
Power Supply Unit (PSU)
24
AC PSU
Type: Built-in
Quantity: 1
Rated voltage range: 90 to 264 VAC, 50-60 Hz
25
DC PSU
Type: Built-in
Quantity: 1
Rated voltage range: -48 to 60 VDC
26
Compatible Service Cards
27
Uplink Cards
Model Number Description
XS1C:
  • 1-Port XG-PON (symmetric)
28
Ethernet Service Cards
Model Number Description
EGUC:
  • 8-Port 1GbE (RJ45)
29
Voice Service Cards
Model Number
Description
ASNB:
  • 16-channel POTS
30

MA5878 Datasheet (en)
