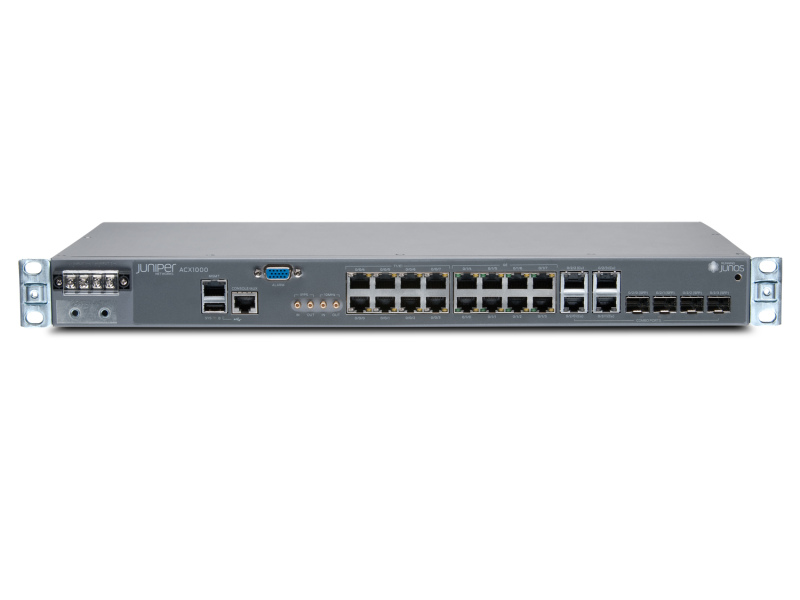

Juniper ACX1000 is a universal access router for Metro Ethernet networks, supports high bandwidth up to 60 Gb/s.

The compact ACX1000 router supports passive cooling. A fixed port configuration includes up to 8 x T1/E1 interfaces, 8 x 1GbE ports, 4 combo 1GbE (RJ45/SFP) ports.

General All

Interfaces

ACX1000:

4-Port combo 1GbE (RJ45/SFP);
8-Port 1GbE (SFP);
8-Port E1/T1 (RJ45);
1-Port out-of-band management 1GbE (RJ45);
1-Port Clock IN (SMB) (1 PPS);
1-Port Clock OUT (SMB) (1 PPS);
1-Port Clock IN (SMB) (10MHz);
1-Port Clock OUT (SMB) (10MHz);
1-Port alarm (DB9);
1-Port console (RJ45);
1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

44 (1U) x 445 х 240

(1.75 (1U) x 17.5 x 9.4)

Maximum Weight (kg)/(lbs)

2.94 (6.5)

Environmental Conditions

Relative Humidity (%)

0 to 95

Operating Temperature (°C)/(°F)

-40 to +65 (-40 to 149)

Maximum power consumption (W)

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)

Layer 3 features

IP Routing

Static Routing; BGP; IS-IS; OSPFv2

MPLS / VPN

MPLS LDP; RSVP-TE; L2VPN (BGP); L3VPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
BRAS:	Not supported
NAT	Not supported
Packet Filtering:	Supported

Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF

Power Supply Unit (PSU)

AC PSU

Not supported

DC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	-48 to -60 VDC

Compatible Expansion Cards

Not supported
