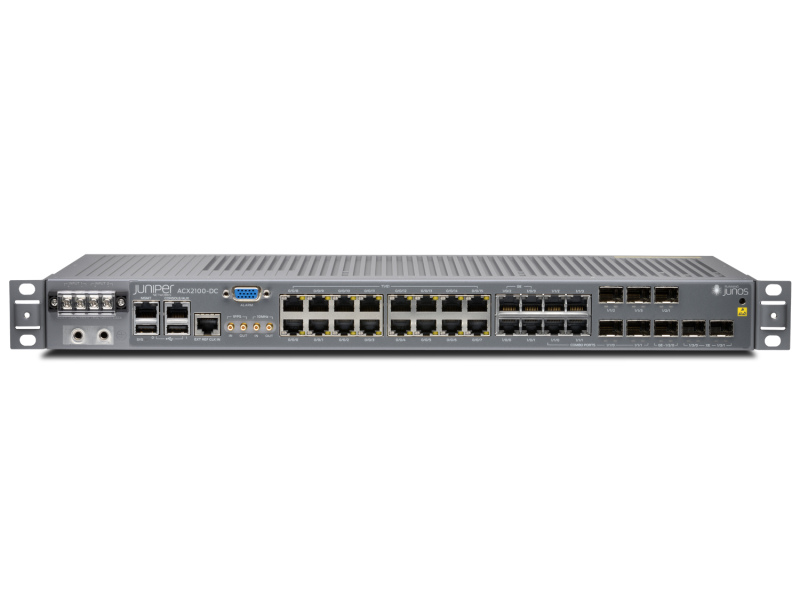

Router Juniper ACX2100

Router Juniper ACX2100 Available to Quote:

ACX2100-AC;

ACX2100-DC

Request a Quote

Description Specifications Additional materials

Juniper ACX2100 is a universal access router for Metro Ethernet networks, supports high bandwidth up to 60 Gb/s.

The compact ACX2100 router supports passive cooling. A fixed port configuration includes up to 16 x T1/E1 interfaces, 4 x 1GbE ports (RJ45), 2 x 1GbE ports (SFP), 2 x 10GbE ports (SFP+), 4 combo 1GbE (RJ45/SFP) ports.

General All

Interfaces

ACX2100-AC/DC:

4-Port combo 1GbE (RJ45/SFP);
4-Port 1GbE (RJ45);
2-Port 1GbE (SFP);
2-Port 1/10GbE (SFP/SFP+);
16-Port E1/T1 (RJ45);
1-Port out-of-band management 1GbE (RJ45);
1-Port Clock IN (SMB) (1 PPS);
1-Port Clock OUT (SMB) (1 PPS);
1-Port Clock IN (SMB) (10MHz);
1-Port Clock OUT (SMB) (10MHz);
1-Port alarm (DB9);
1-Port EXT REF CLK IN (RJ45);
1-Port console (RJ45);
1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

44 (1U) x 445 x 240

(1.75 (1U) x 17.5 x 9.4)

Maximum Weight (kg)/(lbs)

3.77 (8.3)

Environmental Conditions

Relative Humidity (%)

0 to 95

Operating Temperature (°C)/(°F)

-40 to +65 (-40 to 149)

Maximum power consumption (W)

ACX2100-АС:	60
ACX2100-DC:	80

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)

Layer 3 features

IP Routing

Static Routing; BGP; IS-IS; OSPFv2

MPLS / VPN

MPLS LDP; RSVP-TE; L2VPN (BGP); L3VPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
BRAS:	Not supported
NAT:	Not supported
Packet Filtering:	Supported

Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	2
Rated voltage range:	90 to 240 VAC, 50-60 Hz

DC PSU

Type:	Built-in
Quantity:	2
Rated voltage range:	-48 to -60 VDC

Compatible Expansion Cards

Not supported

ACX2100 Datasheet (en)
