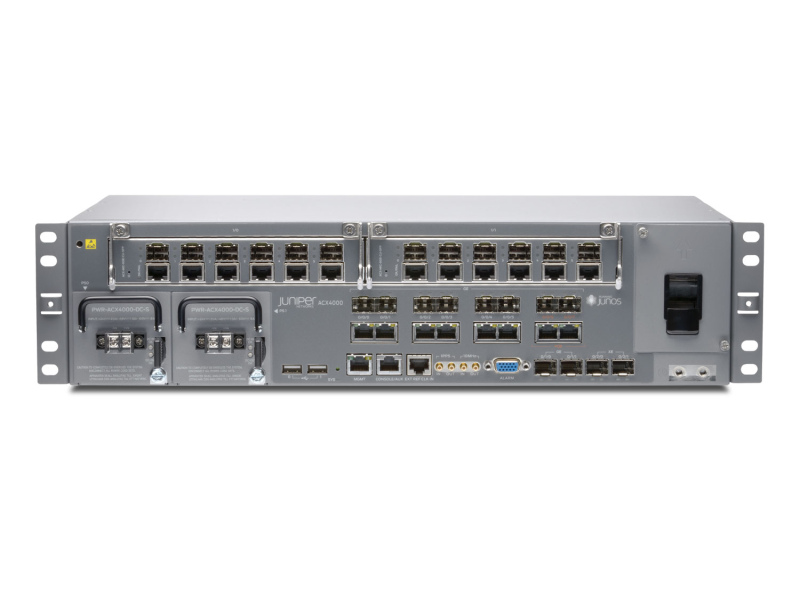

Router Juniper ACX4000 Available to Quote:

ACX4000

Request a Quote
Description Specifications Additional materials

Juniper Networks ACX4000 is a Metro Ethernet router with 1GbE, 10GbE ports and bandwidth up to 60 Gb/s bandwidth.

The ACX4000 has 2 Modular Interface Card (MIC) slots with E1 interfaces.

General All
Interfaces
1
ACX4000:
  • 2 Expansion slots on the front panel;
  • 8-Port combo 1GbE (RJ45/SFP);
  • 2-Port 1GbE (RJ45);
  • 2-Port 1/10GbE (SFP/SFP+);
  • 2-Port Clock (SMB) (IN / OUT) (10 MHz);
  • 2-Port Clock (SMB) (IN / OUT) (1 PPS);
  • 1-Port alarm (DB9);
  • 1-Port EXT REF CLK IN (RJ45);
  • 1-Port out-of-band management (RJ45);
  • 1-Port console (RJ45);
  • 2-Port USB
2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
110 (2.5U) x 445 x 235
(4.35 (2.5U) x 17.5 x 9.25)
4
Maximum Weight (kg)/(lbs)

10.82 (23.8)

5
Environmental Conditions
6
Relative Humidity (%)

0 to 95

7
Operating Temperature (°C)/(°F)
-40 to +65 (-40 to 149)
8
Maximum power consumption (W)

370

9
Acoustic noise (dB)

70

10
Performance
11
Switching Bandwidth (Gbit/s)

60

12
Layer 2 Features
13
VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

14
Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)

15
Layer 3 features
16
IP Routing

Static Routing; BGP; IS-IS; OSPFv2

17
MPLS / VPN
18

MPLS LDP; RSVP-TE; L2VPN (BGP); L3VPN

19
Security
20
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Not supported
BRAS: Not supported
NAT: Not supported
Packet Filtering: Supported
21
Management
22

Telnet; SNMP v1/v2/v3; SSH; NETCONF

23
Power Supply Unit (PSU)
24
AC PSU
Type: Removable
Quantity: 2
Rated voltage range: 90 to 240 VAC, 50-60 Hz



25
DC PSU
Type: Removable
Quantity: 2
Rated voltage range: -48 to -60 VDC
26
Compatible Interface Cards (MIC)
27
Model Number
Description
ACX-MIC-4COC3-1COC12-CE:
4-Port CHOC3 / STM-1 / 1 x CHOC12 / STM-4
ACX-MIC-16CHE1-T1-CE:
16-Port T1/E1
