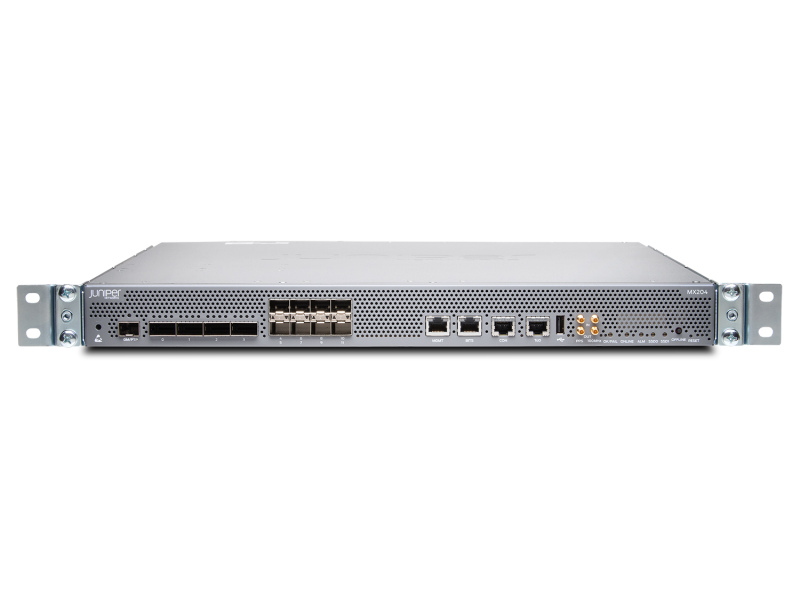

Router Juniper MX204
Router Juniper MX204 Available to Quote:

MX204

 Request a Quote
Description Specifications Additional materials

Edge Router for Enterprise or Medium Service Provider Networks

General All
Interfaces
1
MX204:
  • 4-Port 40/100GbE (QSFP28);
  • 8-Port 10GbE (SFP+);
  • 1-Port PTP (SFP);
  • 1-Port out-of-band management 1GbE (RJ45);
  • 1-Port Clock (BITS) (RJ45);
  • 1-Port console (RJ45);
  • 1-Port ToD (RJ45);
  • 1-Port USB;
  • 1-Port Clock IN (SMB) (10 MHz);
  • 1-Port Clock OUT (SMB) (10 MHz);
  • 1-Port Clock IN (SMB) (1 PPS);
  • 1-Port Clock OUT (SMB) (1 PPS)
2
Physical Parameters
3
Dimensions (HxWxD) (mm)/(in)
44.5 (1U) x 447 х 475
(1.75 (1U) x 17.6 x 18.7)
4
Maximum Weight (kg)/(lbs)

10.5 (23.15)

5
Environmental Conditions
6
Relative Humidity (%)

5 to 90

7
Operating Temperature (°C)/(°F)

0 to 55 (32 to 131)

8
Maximum power consumption (W)

260

9
Acoustic noise (dB)

60

10
Performance
11
Switching Bandwidth (Gbit/s)

400

12
Layer 3 features
13
Routing Table (prefixes)
Routing Table (RIB): 20M prefixes (MX204-IR/-R mode)
Forwarding Table (FIB): 4M prefixes (MX204-IR/-R mode)
14
IP Routing

Static Routing; BGP (MX204-IR/-R mode); IS-IS (MX204-IR/-R mode); OSPFv2 (MX204-IR/-R mode))

15
MPLS / VPN
16

Supported (with MX204-IR/-R mode).  LDP; RSVP; VPLS; L2VPN; EVPN

17
Security
18
Local AAA: Supported
RADIUS, TACACS+: Supported
DHCP Server: Supported
BRAS: Supported
NAT: Not supported
Packet Filtering: Supported
19
Management
20

Telnet; SNMP v1/v2/v3; SSH; NETCONF

21
Power Supply Unit (PSU)
22
AC PSU
Type: Removable
Quantity: 2
Rated voltage range: 100 to 240 VAC, 50-60 Hz
23
DC PSU
Type: Removable
Quantity: 2
Rated voltage range: -40 to -72 VDC
24
Compatible Interface Cards (MIC)
25

Not supported

26

MX204 Datasheet (en)
