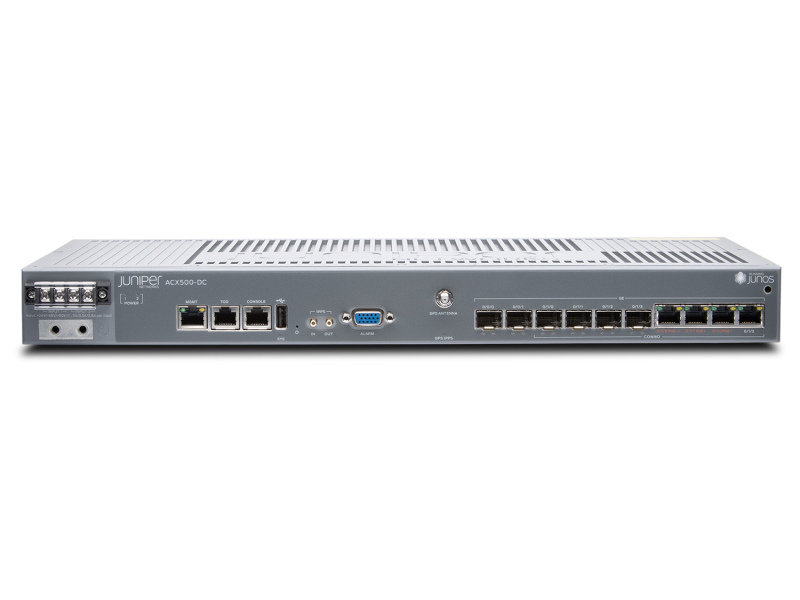

Routers Juniper ACX500 Series

Routers Juniper ACX500 Series Available to Quote:

ACX500; ACX500-O;

ACX500-O-POE

Request a Quote

Description Specifications Additional materials

Juniper ACX500 series routers are designed for deployment in LTE Advanced mobile and transport networks.

Juniper ACX500 series supports passive cooling, a wide range of security functions, and data synchronization.

Models in a compact form factor (1U) with fixed ports: 4 combo 1GbE (RJ45/SFP) ports (PoE), 2 x 1GbE ports, or 3 x 1GbE (RJ45) ports and 3 x 1GbE (SFP) ports.

General All

Interfaces

ACX500:	4-Port combo 1GbE (RJ45/SFP) (3 ports supports PoE+); 2-Port 1GbE (SFP); 1-Port out-of-band management 1GbE (RJ45); 1-Port ToD (RJ45); 1-Port Clock IN (SMB) (1 PPS); 1-Port Clock OUT (SMB) (1 PPS); 1-Port alarm (DB9); 1-Port GPS (SMA); 1-Port console (RJ45); 1-Port USB
ACX500-O:	3-Port 1GbE (RJ45); 3-Port 1GbE (SFP); 1-Port out-of-band management 1GbE (RJ45); 1-Port ToD (RJ45); 1-Port Clock IN (SMB) (1 PPS); 1-Port Clock OUT (SMB) (1 PPS); 1-Port alarm (DB9); 1-Port GPS (SMA); 1-Port console (RJ45); 1-Port USB
ACX500-O-POE:	3-Port 1GbE (RJ45) PoE; 3-Port 1GbE (SFP); 1-Port out-of-band management 1GbE (RJ45); 1-Port ToD (RJ45); 1-Port Clock IN (SMB) (1 PPS); 1-Port Clock OUT (SMB) (1 PPS); 1-Port alarm (DB9); 1-Port GPS (SMA); 1-Port console (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

ACX500:	44 (1U) x 445 x 240 (1.75 x 17.5 x 9.4)
ACX500-O:	312 x 203 x 109 (12.3 x 8 x 4.3)
ACX500-O-PoE:	406 x 254 x 11.9 (16 x 10 x 4.7)

Maximum Weight (kg)/(lbs)

ACX500-AC:	4.2 (9.26)
ACX500-DC:	3.9 (8.6)
ACX500-O-AC:	5.3 (11.68)
ACX500-O-DC:	5.0 (11.0)
ACX500-O-PoE-AC:	6.5 (14.33)
ACX500-O-PoE-DC:	6.2 (13.66)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

-40 to +65 (-40 to 149)

Maximum Power Consumption (W)

ACX500:	145
ACX500-O:	55
ACX500-O-PoE:	135

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)

Layer 3 features

IP Routing

Static Routing; BGP; IS-IS; OSPFv2

MPLS / VPN

MPLS LDP; RSVP-TE; L2VPN (BGP); L3VPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
BRAS:	Not supported
NAT:	Not supported
Packet Filtering:	Supported

Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	90 to 240 VAC, 50-60 Hz

DC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	-48 to -60 VDC

Compatible Expansion Cards

Not supported
