Routers Juniper ACX5000 Series

Routers Juniper ACX5000 Series Available to Quote:

ACX5048; ACX5096

Request a Quote

Description Specifications Additional materials

Juniper Networks ACX5000 is a series of universal routers for the Metro Ethernet network with 1GbE, 10GbE, 40GbE ports and high bandwidth up to 2.56 Tbit/s.

General All

Interfaces

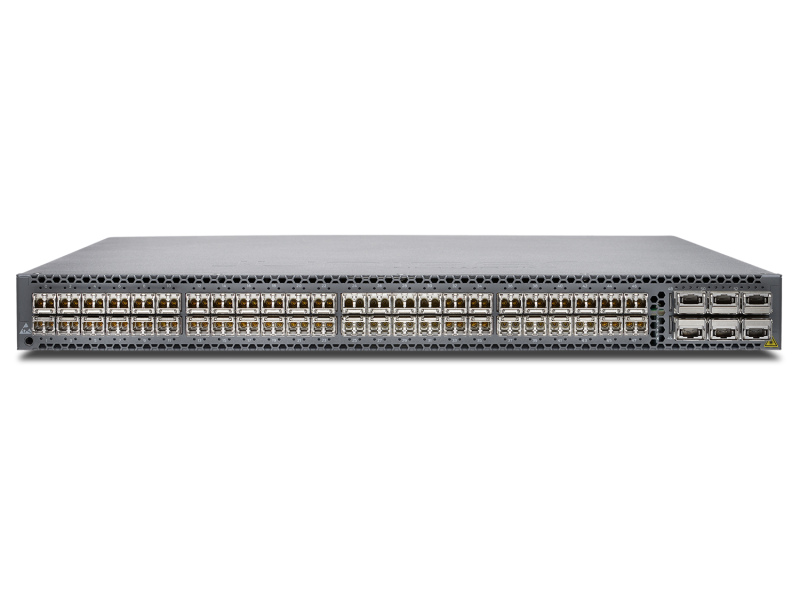

ACX5048:	48-Port 1/10GbE (SFP/SFP+); 6-Port 40GbE (QSFP+); 1-Port out-of-band management combo 1GbE (RJ45)/(SFP); 1-Port out-of-band management 1GbE (SFP); 1-Port console (RJ45); 1-Port USB
ACX5096:	48-Port 1GbE (SFP); 96-Port 10GbE (SFP/SFP+); 8-Port 40GbE (QSFP+); 1-Port out-of-band management combo 1GbE (RJ45)/(SFP); 1-Port out-of-band management 1GbE (SFP); 1-Port console (RJ45); 1-Port USB
ACX5448:	48-Port 1/10GbE (SFP/SFP+); 4-Port 100GbE Uplik; 1-Port out-of-band management combo 1GbE (RJ45)/(SFP); 1-Port out-of-band management 1GbE (SFP); 1-Port console (RJ45); 1-Port USB
ACX5448-M:	44-Port 1/10GbE (SFP/SFP+); 6-Port 100GbE (QSFP28); 1-Port out-of-band management combo 1GbE (RJ45)/(SFP); 1-Port out-of-band management 1GbE (SFP); 1-Port console (RJ45); 1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

ACX5048:	43.7 (1U) x 440.9 x 520.2 (1.72 (1U) x 17.36 x 20.48)
ACX5096:	88 (1U) x 440.9 x 570 (3.46 (2U) x 17.36 x 22.44)
ACX5448:	43.3 (1U) x 438.4 x 554.1 (1.7 (1U) x 17.26 x 21.81)
ACX5448-M:	44.1 (1U) x 444.5 x 511.8 (1.75 (1U) x 17.5 x 23.97)

Maximum Weight (kg)/(lbs)

ACX5048:	9.9 (21.8)
ACX5096:	14.74 (32.5)
ACX5448:	10.18 (22.45)
ACX5448-M:	11.85 (26.12)

Environmental Conditions

Relative Humidity (%)

0 to 90

Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

Maximum power consumption (W)

ACX5048:

350

ACX5096:

550

ACX5448:

ACX5448-M:

450

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

ACX5048:

1440

ACX5096:

2560

ACX5448:

ACX5448-M:

800

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; ERPS (G.8032)

Layer 3 features

IP Routing

Static Routing; BGP; IS-IS; OSPFv2

MPLS / VPN

MPLS LDP; RSVP-TE; L2VPN (BGP); L3VPN; VPLS

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
BRAS:	Not supported
NAT:	Not supported
Packet Filtering:	Supported

Management

Telnet; SNMP v1/v2/v3; SSH; NETCONF

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	110 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:
ACX5048: ACX5096:	-36 to -72 VDC
ACX5448: ACX5448-M:	-44 to -72 VDC

Compatible Interface Cards (MIC)

Not supported
