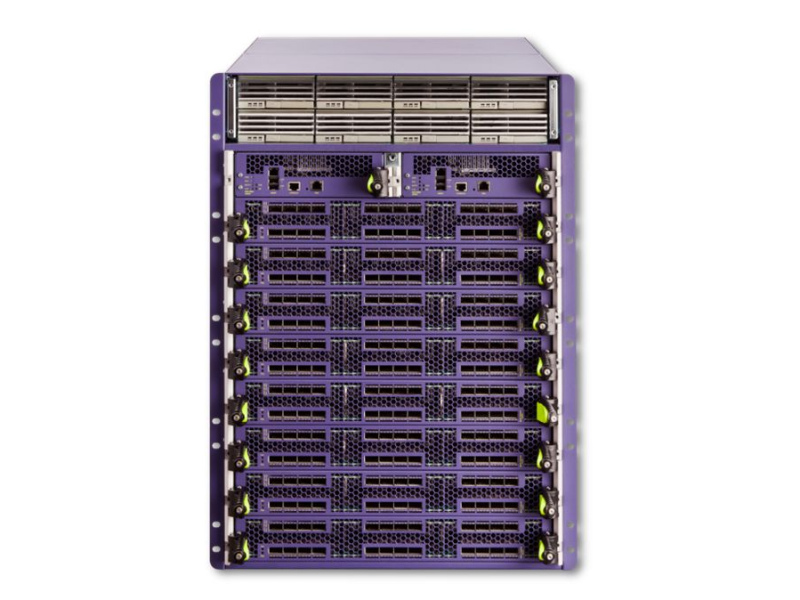

Switch Extreme Networks BD X8

Switch Extreme Networks BD X8 Available to Quote:

BDX8

Request a Quote

Description Specifications Additional materials

The Extreme Networks BD X8 Modular Switch provides a low-latency switching, and a high density of 100 MbE to 100 GbE ports.

General All

Interfaces

BDX8:

8 Service Module slots;
4 Fabric Module slots;
2 Management Module slots

Physical Parameters

Dimensions (HxWxD) (mm)

635 (14.3U) x 457 х 762

(25 (14.3U) x 18 x 30 in)

Maximum Weight (kg)

190 (420.6 lbs)

Environmental Conditions

Relative Humidity (%)

10 to 95

Operating Temperature (°C)

0 to 40 (32 to 10 °F)

Maximum power consumption (W)

8460 (with 20 Tbit/s Fabric Modules)

Acoustic noise (dB)

Performance

Switching Bandwidth (Tbit/s)

20.48 (with BDXA-FM20T Fabric Modules)

Forwarding Rate (Bp/s)

15.2

MAC Address Table (entries)

10/40GbE series modules:	128,000
100GbE series modules (NON-XL):	384,000
100GbE series modules (XL):	1М

ARP Table (entries)

10/40GbE Series Modules:	16,000
100GbE Series Modules (NON-XL):	130,000
100GbE Series Module (XL):	268,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; EAPS

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-DM; PIM-SM; PIM-SSM; MSDP

Layer 3 features

Routing Table (routes)

FIB IPv4:
10/40GbE Series Modules:	16,000
100GbE Series Modules (NON-XL):	16,000
100GbE Series Modules (XL):	1М

FIB IPv6:
10/40GbE Series Modules:	8000
100GbE Series Modules (NON-XL):	8000
100GbE Series Modules (XL):	512,000

IP Routing

Static Routing, RIPv1/2, OSPFv2, IS-IS, BGP, MBGP; VRRP

MPLS / VPN

Supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; XML; LLDP; SNMP v1/v2/v3; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	8
Rated voltage range:	100 to 240 VAC; 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Not supported

Compatible Management Modules

Model Number	Description
BDX-MM1:	Management Module 1 for BDX8

Compatible Fabric Modules

Model Number	Description
BDXA-FM10T:	2.56 Tbit/s Fabric Module for BD X8
BDXA-FM20T:	5.12 Tbit/s Fabric Module for BD X8

Compatible Service Modules

Model Number	Description
BDXA-G48T:	48-Port 1GbE (RJ45)
BDXA-G48X:	48-Port 1GbE (SFP)
BDXA-10G48T:	48-Port 10GbE (RJ45)
BDXA-10G48X:	48-Port 10GbE (SFP+)
BDXA-40G12X:	12-Port 40GbE (QSFP+)
BDXB-40G12X-XL:	12-Port 40GbE (QSFP+) (or used as 48 x 10GbE (SFP+)) “XL” module. Up to 1M TCAM entries scale is supported
BDXA-40G24X:	24-Port 40GbE (QSFP+)
BDXB-100G4X:	4-Port 100GbE (CFP2)
BDXB-100G4X-XL:	4-Port 100GbE (CFP2) (or used as 40-Port 10GbE SFP+) “XL” module. Up to 1M TCAM entries scale is supported
