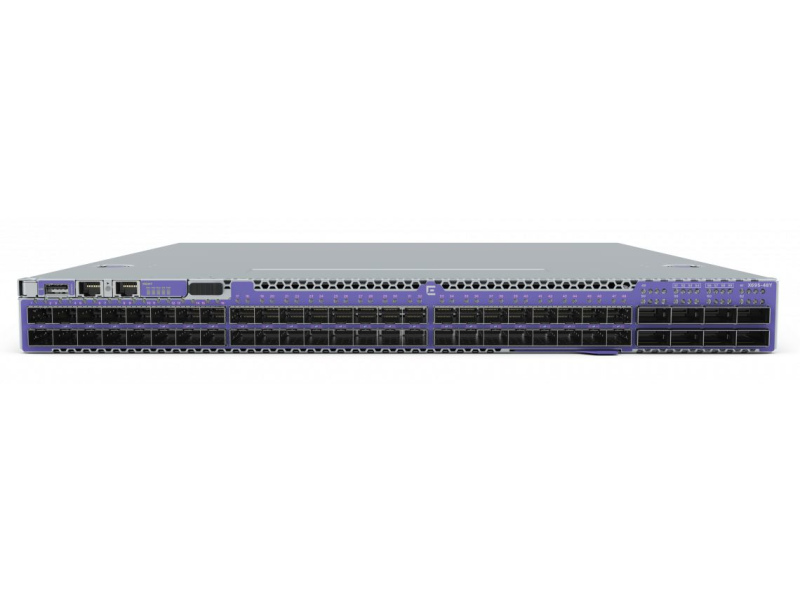

Switch Extreme Networks X695

Switch Extreme Networks X695 Available to Quote:

X695-48Y-8C

Request a Quote

Description Specifications Additional materials

Distribution (Aggregation) Layer Manageable Switch

General All

Interfaces

X695-48Y-8C:

48-Port 10/25GbE (SFP28);
8-Port 40/100GbE (QSFP28);
1-Port console (RJ45);
1-Port out-of-band management 1GbE (RJ45);
1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

43 (1U) x 440 x 532

(1.7 (1U) x 17.3 x 20.9)

Maximum Weight (kg)/(lbs)

9.07 (20)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

0 to 45 (32 to 113)

Maximum Power Consumption (W)

469

Acoustic noise (dB)

77.5

Performance

Switching Bandwidth (Tbit/s)

Forwarding Rate (Mp/s)

971

MAC Address Table (entries)

290,000

ARP Table (entries)

164,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4092. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; EAPS; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; PIM-DM (with Core license); PIM-SSM (with Core license)

Layer 3 features

Routing Table (routes)

IPv4:	128,000
IPv6:	64,000

IP Routing

Static Routing; RIP v1/v2; OSPF; BGP (with Core license); IS-IS (with Core license)

MPLS / VPN

Not supported

VXLAN

Supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; IPFIX; SNMP v1/v2/v3; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-40 to -75 VDC

PoE (Power over Ethernet)

Not supported

Compatible expansion cards

Not supported
