Switch Extreme Networks X770

Switch Extreme Networks X770 Available to Quote:

Summit X770-32q

Request a Quote

Description Specifications Additional materials

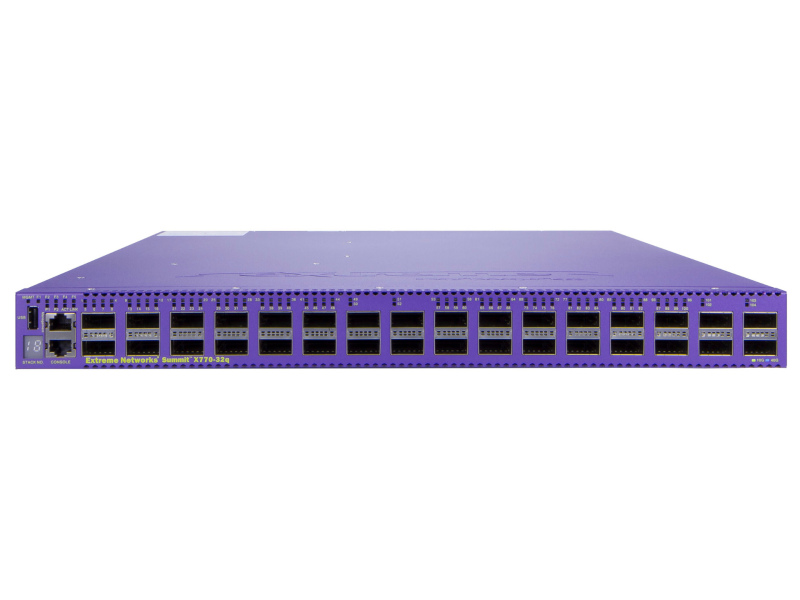

The Extreme Networks X770 Switch is equipped with 32 ports 40GbE (QSFP+) in a compact 1U form factor.

The Extreme Networks X770 switch is designed on the ExtremeXOS modular operating system, which provides simplicity and ease of use of the network equipment.

General All

Interfaces

Summit X770-32Q:

32-Port 40GbE (QSFP+);
1-Port console (RJ45);
1-Port out-of-band management 10/100MbE (RJ45);
1-Port USB;
2-Port Sync (BNC)

Dimensions (HxWxD) (mm)/(in)

44 (1U) х 441 х 489

(1.73 (1U) x 17.4 x 19.25)

Maximum Weight (kg)/(lbs)

7.3 (16.0)

Environmental Conditions

Relative Humidity (%)

10 to 95

Operating Temperature (°C)/(°F)

0 to 45 (32 to 113)

Maximum Power Consumption (W)

355

Acoustic noise (dB)

Performance

Switching Bandwidth (Tbit/s)

2.56

Forwarding Rate (Mp/s)

1904

MAC Address Table (entries)

288,000

ARP Table (entries)

104,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; MVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP/PVST+; EAPS; ERPS (G.8032); TRILL (with TRILL license)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM (with Core license); PIM-DM (with Core license); PIM-SSM (with Core license); MSDP (with Core license); Anycast RP (with Core license)

Layer 3 features

Routing Table (routes)

IPv4:	16,000
IPv6:	4000

IP Routing

Static Routing; RIPv1/2; OSPFv2 (with Core license); IS-IS (with Core license); BGP (with Core license); MBGP (with Core license); VRRP

MPLS / VPN

Supported (with MPLS license). MPLS LDP; GRE

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported
