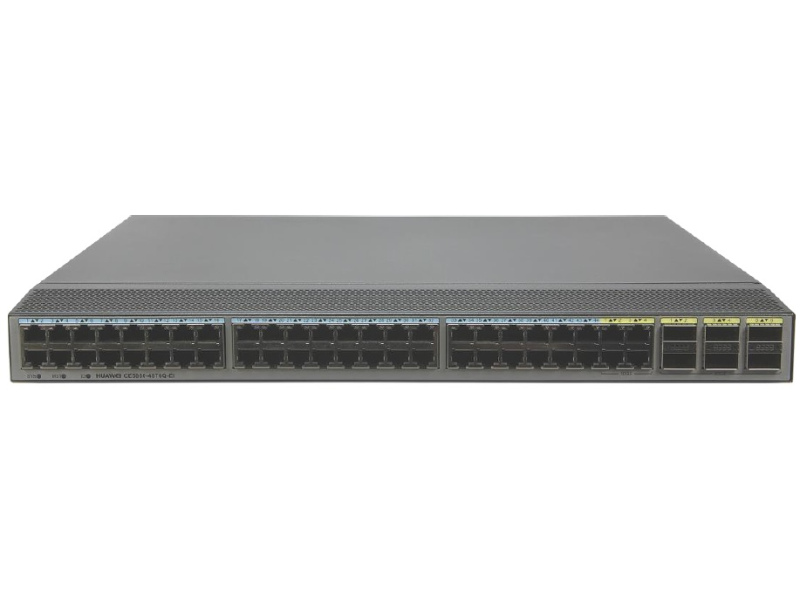

Switch Huawei CE5880-48T6Q-EI

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

Distribution Layer Manageable Switch with 44 x 1G (RJ45), 4 x 10G (SFP+) ports and 2 x 40G (QSFP+) uplinks.

General All

Interfaces

CE5880-48T6Q-EI:

44-Port 1GbE (RJ45);
4-Port 10GbE (SFP+)
6-Port 40GbE (QSFP+);
1-Port console (RJ45);
1-Port out-of-band management 10/100MbE (RJ45);
1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

43,6 (1U) x 442 х 420

(1.71 (1U) x 17.4 x 16.54)

Maximum Weight (kg)/(lbs)

9.1 (20.06)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

Maximum Power Consumption (W)

244

Acoustic noise (dB)

Performance

Switching Bandwidth (Tbit/s)

648

Forwarding Rate (Mp/s)

406

MAC Address Table (entries)

176,000

ARP Table (entries)

128,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094. GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; MBGP

Layer 3 Features

Routing Table (routes)

IPv4:	128 000
IPv6:	64 000

IP Routing

Static Routing, RIPv1/2, OSPF, IS-IS, BGP

MPLS / VPN

Not supported

VXLAN

Layer 2 Gateway, Layer 3 Gateway, BGP-EVPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Pluggable
Quantity:	2
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Pluggable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Not supported

CE5880-48T6Q-EI Datasheet (en)
