Switch Huawei CloudEngine S6730-S Series

Switch Huawei CloudEngine S6730-S Series Available to Quote:

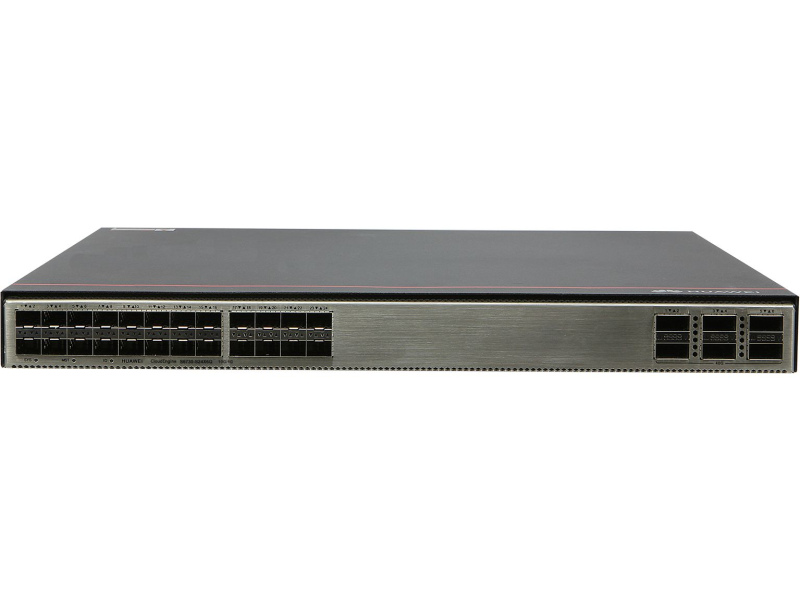

Huawei CloudEngine S6730-S24X6Q

Request a Quote

Description Specifications Additional materials

Huawei CloudEngine S6730-S series switch with 24 x 10G and 6 x 40 ports for campus networks.

General All

Interfaces

S6730-S24X6Q:

24-Port 10GbE (SFP+);
6-Port 40GbE (QSFP);
1-Port console (RJ45);
1-Port out-of-band management 10/100MbE (RJ45);
1-Port USB

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

43,6 (1U) x 442 x 420

(1.71 (1U) x 17.4 x 16.53)

Maximum Weight (kg)/(lbs)

6.95 (15.32)

Environmental Conditions

Relative Humidity (%)

5 to 95

Operating Temperature (°C)/(°F)

-5 to 45 (23 to 113)

Maximum Power Consumption (W)

225

Acoustic noise (dB)

Performance

Switching Bandwidth (Gbit/s)

960

Forwarding Rate (Mp/s)

490

MAC Address Table (entries)

64,000

ARP Table (entries)

64,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4000; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MSTP; VBST (PVST+); SEP; RRPP; ERPS (G.8032)

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4096
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; PIM-DM; MSDP

Layer 3 Features

Routing Table (routes)

IPv4:	64,000
IPv6:	32,000

IP Routing

Static Routing; RIPv1/2; OSPF; IS-IS; BGP

MPLS / VPN

Not supported

VXLAN

Layer 2 Gateway, Layer 3 Gateway, BGP-EVPN

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop Detection:	Supported
IP Source Guard:	Supported
Bandwidth Limitation:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; Web; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Pluggable
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Type:	Pluggable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Not supported
