QFX10008

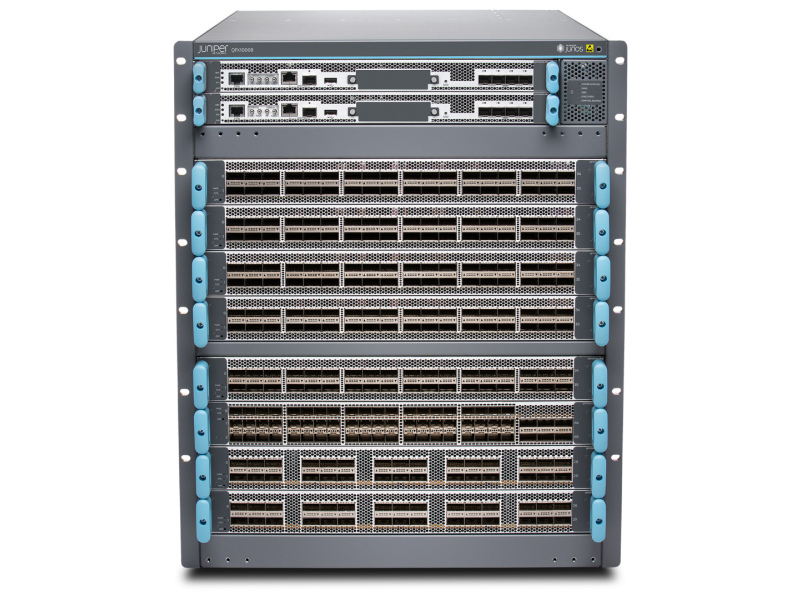

Request a QuoteThe Juniper Networks QFX10008 Modular Switch has a chassis with 8 expansion slots, and is designed for deployment in data centers, and large campus networks.
The switch supports fixed and modular service cards with a high throughput of 96 Tbit/s to 200 Tbit/s and a high port density of 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s.
| QFX10008: |
|
224 (493 lbs)
5 to 90
0 to 40 (32 to 104 °F)
12,000
70
48
16
1М
510,000
IEEE 802.1Q: 4093; GVRP; QinQ; VLAN Translation
STP/RSTP/MSTP
|
IGMP snooping:
|
v1/v2/v3
|
|
IGMP groups:
|
4091
|
|
Multicast VLAN (MVR):
|
Supported
|
|
Multicast Routing:
|
PIM-SM; PIM-SSM; PIM-DM; MSDP
|
|
RIB IPv4:
|
10M
|
|
FIB IPv4:
|
2M routes (with 1M FIB license. 256,000 routes are supported by default)
|
|
RIB IPv6:
|
4M
|
|
FIB IPv6:
|
2M routes (with 1M FIB license. 256,000 routes are supported by default)
|
Static Routes, RIPv1/2, OSPFv2, IS-IS (with Premium Feature license); BGP (with Premium Feature license) VRRP
Supported (with Advanced Feature license). MPLS LDP; L2VPN; L3VPN
| Local AAA: | Supported |
| RADIUS, TACACS+: | Supported |
| DHCP Server: | Supported |
| DHCP Relay option82: | Supported |
| DHCP Snooping: | Supported |
| Loop detection: | Supported |
| IP Source Guard: | Supported |
| Bandwidth Limit: | Supported |
| Broadcast, multicast, unknown unicast suppression: | Supported |
Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python
|
Type:
|
Removable
|
|
Quantity:
|
6
|
|
Rated voltage range:
|
100 to 240 VAC, 50-60 Hz
|
|
Type:
|
Removable
|
|
Quantity:
|
6
|
|
Rated voltage range:
|
-40 to -72 VDC
|
| Model Number | Description |
| QFX10000-RE: |
Integrated Routing Engine. CPU: 4-core 2.5
GHz; Memory: 32 GB; SSD: 32 GB
|
| Model Number | Description |
| QFX10008-SF: |
Switch Fabric card. 7.2 Tb/s throughput per slot
|
| Model Number | Description |
| QFX10000-36Q: |
36-Port 40GbE (QSFP+)
|
| QFX10000-30C: |
30-Port 100GbE (QSFP28)
|
| QFX10000-60S-6Q: |
60-Port 1/10GbE (SFP/SFP+) + 6-Port 40GbE (QSFP+)
|
