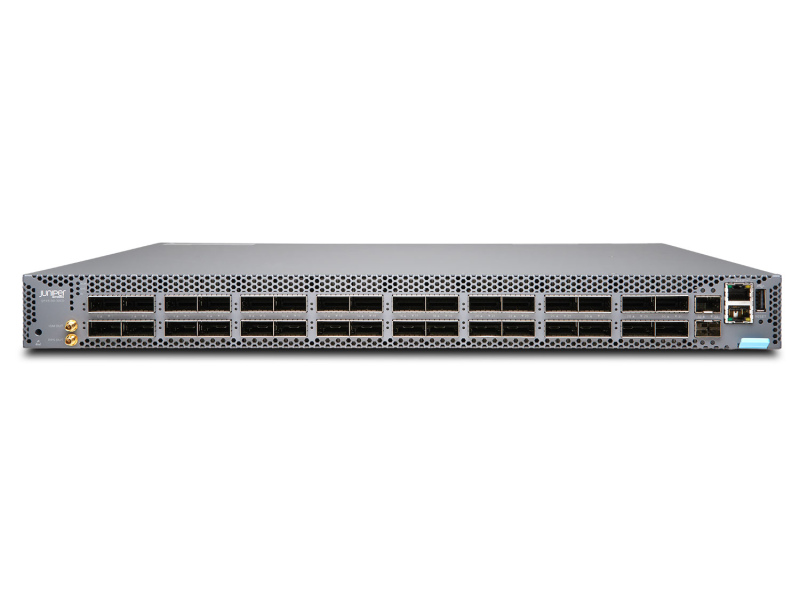

Switch Juniper QFX5130-32CD

Switch Juniper QFX5130-32CD Available to Quote:

QFX5130-32CD

Request a Quote

Description Specifications Additional materials

The Juniper Networks QFX5130-32CD Managed Switch with a high port density of 10 Gbit/s, 25 Gbit/s, 40 Gbit/s, 100 Gbit/s, 400 Gbit/s provides flexible deployment in a datacenter networks.

QFX5130-32CD runs on the reliable Juniper Networks Junos operating system, supports MPLS, layer 2 and layer 3.

General All

Interfaces

QFX5130-32CD:

32-Port 40/100/400GbE (QSFP-DD);
2-Port 10GbE (SFP+);
1-Port out-of-band management 1GbE (RJ45);
1-Port console (RJ45);
1-Port USB;
1-Port Clock (SMB)

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

43 (1U) x 438 x 535.9

(1.72 (1U) x 17.26 x 21.1)

Maximum Weight (kg)/(lbs)

11.11 (24.5)

Environmental Conditions

Relative Humidity (%)

5 to 90

Operating Temperature (°C)/(°F)

0 to 40 (32 to 104)

Maximum Power Consumption (W)

973

Acoustic noise (dB)

Performance

Switching Bandwidth (Tbit/s)

25.6

Forwarding Rate (Bp/s)

5.68

MAC Address Table (entries)

160,000

ARP Table (entries)

64,000

Layer 2 Features

VLAN

IEEE 802.1Q: 4094; GVRP; QinQ; VLAN Translation

Layer 2 Reliability

STP, RSTP, MSTP

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	4091
Multicast VLAN (MVR):	Supported
Multicast Routing:	PIM-SM; PIM-SSM; MSDP

Layer 3 features

Routing Table (routes)

IPv4:	1,240,000
IPv6:	610,000

IP Routing

Static Routing; RIP; OSPF; IS-IS (with Advanced Feature license); BGP (with Advanced Feature license)

MPLS / VPN

EVPN-VXLAN (with Premium Feature license)

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; sFlow; SNMP v1/v2/v3; Syslog; NTP; Junos XML; Python

Power Supply Unit (PSU)

AC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	115 to 240 VAC, 50-60 Hz

DC PSU

Type:	Removable
Quantity:	2
Rated voltage range:	-48 to -60 VDC

PoE (Power over Ethernet)

Not supported

Compatible Expansion Cards

Not supported
