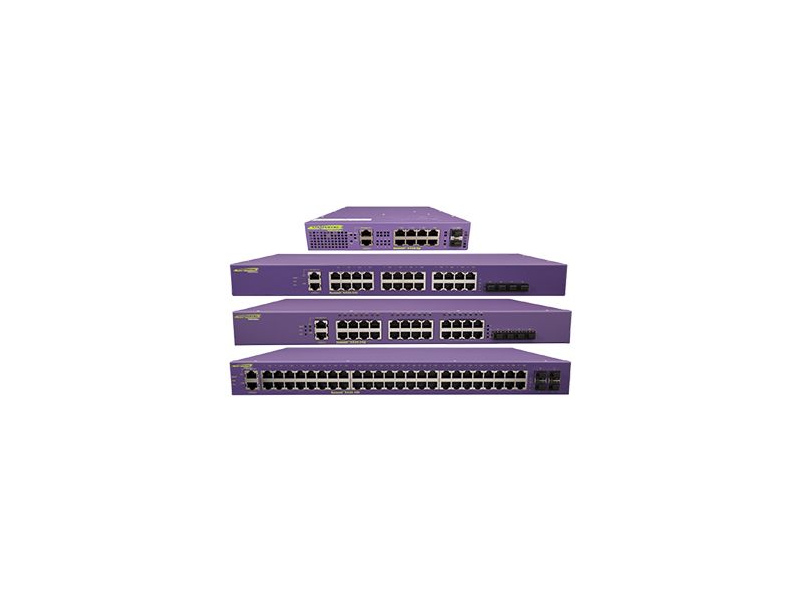

Switches Extreme Networks Summit X430 Series

End-of-Sale

Please see "Similar Products" below.

Description Specifications Additional materials

Access Layer Manageable Switches with 1G access ports.

General All

Interfaces

Summit X430-24t:	24-Port 1GbE (RJ45); 4-Port 100/1000MbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45)
Summit X430-48t:	48-Port 1GbE (RJ45); 4-Port 100/1000MbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45)
Summit X430-8p:	8-Port 1GbE (RJ45) PoE; 2-Port 100/1000MbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45)
Summit X430-24p:	24-Port 1GbE (RJ45) PoE; 4-Port 100/1000MbE (SFP); 1-Port console (RJ45); 1-Port out-of-band management 10/100MbE (RJ45)

Physical Parameters

Dimensions (HxWxD) (mm)/(in)

Summit X430-24t: Summit X430-48t: Summit X430-24p:	44 (1U) x 441 х 254 (1.73 (1U) x 17.36 x 10.0)
Summit X430-8p:	44 (1U) x 221 х 254 (1.73 (1U) x 8.7 x 10.0)

Maximum Weight (kg)/(lbs)

Summit X430-24t:	3.83 (8.44)
Summit X430-48t:	4.125 (9.09)
Summit X430-8p:	2.27 (5.0)
Summit X430-24p:	4.54 (10.0)

Environmental Conditions

Relative Humidity (%)

10 to 95

Operating Temperature (°C)/(°F)

0 to 50 (32 to 122)

Maximum Power Consumption (W)

Summit X430-24t:	28.7
Summit X430-48t:	55.9
Summit X430-8p:	84.2
Summit X430-24p:	425.0

Acoustic noise (dB)

Summit X430-24t: Summit X430-24p:	41
Summit X430-48t:	38
Summit X430-8p:	0

Performance

Switching Bandwidth (Gbit/s)

Summit X430-24t: Summit X430-24p:	56
Summit X430-48t:	104
Summit X430-8p:	20

Forwarding Rate (Mp/s)

Summit X430-24t: Summit X430-24p:	41.6
Summit X430-48t:	77.4
Summit X430-8p:	14.8

MAC Address Table (entries)

16,000

ARP Table (entries)

256

Layer 2 Features

VLAN

IEEE 802.1Q: Summit X430-24t: 3996, Summit X430-48t: 3932. QinQ; VLAN Translation

Layer 2 Reliability

STP/RSTP/MST; PVST+

Multicast

IGMP snooping:	v1/v2/v3
IGMP groups:	1024
Multicast VLAN (MVR):	Supported
Multicast Routing:	Not supported

Layer 3 Features

Routing Table (routes)

IPv4:	32,000
IPv6:	16,000

IP Routing

Static Routing

MPLS / VPN

Not supported

Security

Local AAA:	Supported
RADIUS, TACACS+:	Supported
DHCP Server:	Not supported
DHCP Relay option82:	Supported
DHCP Snooping:	Supported
Loop detection:	Supported
IP Source Guard:	Supported
Bandwidth Limit:	Supported
Broadcast, multicast, unknown unicast suppression:	Supported

Management

Telnet; SSH; LLDP; SNMP v1/v2/v3; RMON; Syslog; NTP

Power Supply Unit (PSU)

AC PSU

Type:	Built-in
Quantity:	1
Rated voltage range:	100 to 240 VAC, 50-60 Hz

DC PSU

Not supported

PoE (Power over Ethernet)

Supported by:	X430-8p, X430-24p

PoE (802.3af) (15W per port):
Summit X430-8p:	8 ports
Summit X430-24p:	24 ports

PoE+ (802.3аt) (30W per port):
Summit X430-8p:	2 ports
Summit X430-24p:	12 ports

PoE++ (802.3bt) (60W per port):	Not supported

PoE++ (802.3bt) (90W per port)	Not supported

Compatible Expansion Cards

Not supported

Summit X430 Datasheet (en)
